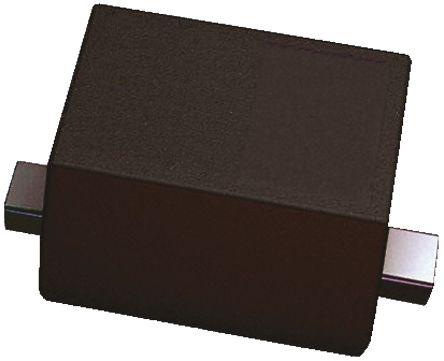

Nexperia PMEG3010EB SMT Schottky Diode, 30V 1A, 2-Pin SOD-523

PMEG3010EB Nexperia SMT Schottky Diode, 30V 1A, 2-Pin SOD-523
Nexperia

Product Information

Dimensions:
1.25 x 0.85 x 0.65mm
Mounting Type:
Surface Mount
Maximum Continuous Forward Current:
1A
Maximum Operating Temperature:
+150 °C
Peak Non-Repetitive Forward Surge Current:
5A
Maximum Forward Voltage Drop:
680mV
Height:
0.65mm
Peak Reverse Current:
500µA
Width:
0.85mm
Length:
1.25mm
Package Type:
SOD-523
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Diode Type:
Schottky
Diode Configuration:
Single
Pin Count:
2
Peak Reverse Repetitive Voltage:
30V
RoHs Compliant
Checking for live stock

This is SMT Schottky Diode 30V 1A 2-Pin SOD-523 manufactured by Nexperia. The manufacturer part number is PMEG3010EB. The given dimensions of the product include 1.25 x 0.85 x 0.65mm. The product is available in surface mount configuration. Furthermore, its maximum continuous forward current constitutes 1a. It has a maximum operating temperature of +150 °c. Moreover, a bespoke product has 5a peak non-repetitive forward surge current. It features 680mv of maximum forward voltage drop. In addition, the height is 0.65mm. It has a typical 500µa peak reverse current . Furthermore, the product is 0.85mm wide. Its accurate length is 1.25mm. The package is a sort of sod-523. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is designed with a schottky diode. The diode features a single configuration. It contains 2 pins. While having the peak reverse repetitive 30v.

pdf icon
PMEG3010EB 1A very low VF MEGA Schottky barrier rectifier datasheet(Technical Reference)
