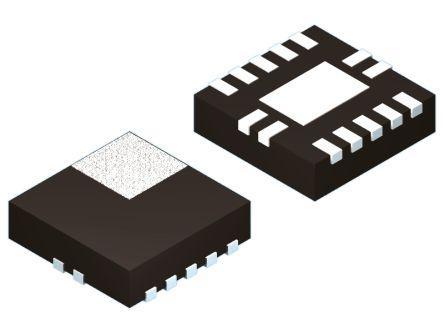

This is NXP Quad 2-Input AND Schmitt Trigger Logic Gate 2 → 5.5 V 14-Pin DHVQFN manufactured by Nexperia. The manufacturer part number is 74AHC08BQ. The given dimensions of the product include 3.1 x 2.6 x 0.95mm. The logic family is ahc. Furthermore, the product is 2.6mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 8ma of max. low level output current. While a -8ma of maximum high level output current. It provides up to 15.5 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has asingle ended output. The package is a sort of dhvqfn. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 3.1mm. It contains 14 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes and. In addition, the height is 0.95mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. It carries 4 elements. Features 50pf of propagation delay test condition.
For more information please check the datasheets.
