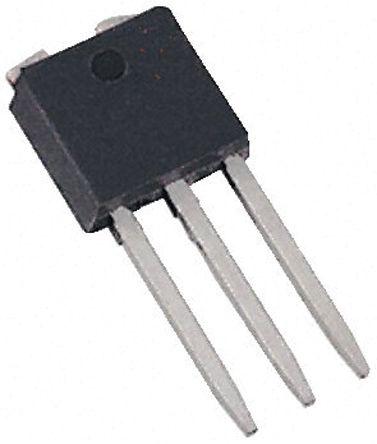

IRGSL10B60KDPBF Infineon IGBT, 35 A 600 V, 3-Pin TO-262

IRGSL10B60KDPBF  Infineon IGBT, 35 A 600 V, 3-Pin TO-262
Infineon

Product Information

Dimensions:
10.67 x 4.83 x 11.3mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
156 W
Maximum Continuous Collector Current:
35 A
Maximum Collector Emitter Voltage:
600 V
Height:
11.3mm
Width:
4.83mm
Length:
10.67mm
Maximum Gate Emitter Voltage:
±20V
Package Type:
TO-262
Minimum Operating Temperature:
-55 °C
Switching Speed:
8 → 30kHz
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is IGBT 35 A 600 V 3-Pin TO-262 manufactured by Infineon. The manufacturer part number is IRGSL10B60KDPBF. The given dimensions of the product include 10.67 x 4.83 x 11.3mm. The product is available in through hole configuration. Provides up to 156 w maximum power dissipation. The product has a maximum 35 a continuous collector current . Whereas features a 600 v of collector emitter voltage (max). In addition, the height is 11.3mm. Furthermore, the product is 4.83mm wide. Its accurate length is 10.67mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of to-262. Whereas, the minimum operating temperature of the product is -55 °c. It has about 8 → 30khz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
