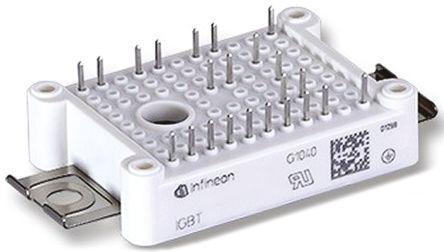

Infineon FP15R12W1T4_B11, EASY1B Common Collector IGBT Module, 28 A max, 1200 V, PCB Mount

Enrgtech Part No: ET14041318
|
Manufacturer Part No:
FP15R12W1T4_B11
|
Manufacturer: Infineon

FP15R12W1T4_B11 Infineon , EASY1B Common Collector IGBT Module, 28 A max, 1200 V, PCB Mount

Product Information

Dimensions:

48 x 33.8 x 12mm

Mounting Type:

PCB Mount

Maximum Power Dissipation:

130 W

Maximum Continuous Collector Current:

28 A

Maximum Collector Emitter Voltage:

1200 V

Configuration:

Common Collector

Height:

12mm

Width:

33.8mm

Length:

48mm

Maximum Gate Emitter Voltage:

±20V

Package Type:

EASY1B

Minimum Operating Temperature:

-40 °C

Checking for live stock

This is EASY1B Common Collector IGBT Module 28 A max 1200 V PCB Mount manufactured by Infineon. The manufacturer part number is FP15R12W1T4_B11. The given dimensions of the product include 48 x 33.8 x 12mm. The product is available in pcb mount configuration. Provides up to 130 w maximum power dissipation. The product has a maximum 28 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). The product is available in common collector configuration. In addition, the height is 12mm. Furthermore, the product is 33.8mm wide. Its accurate length is 48mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of easy1b. Whereas, the minimum operating temperature of the product is -40 °c. It has about 1mhz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 23 pins. The product offers 3 phase transistor configuration.

Explanation Guide to Infineon's Bxx Suffixes(Technical Reference)

FP15R12W1T4_B11, IGBT-Module(Technical Reference)
