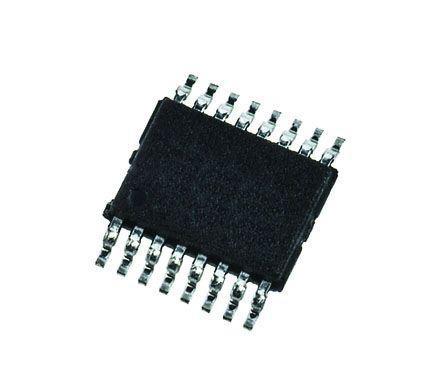

Infineon 1ED020I12-F2 Half Bridge MOSFET Power Driver 2.4A, 4.5 → 5.5 V, DSO-16-15 16-Pin

Infineon

Product Information

Dimensions:
10.34 x 7.52 x 2.34mm
High and Low Sides Dependency:
Independent
Width:
7.52mm
Fall Time:
600ns
Bridge Type:
Half Bridge
Minimum Operating Supply Voltage:
4.5 V
Package Type:
DSO-16-15
Driver Type:
High and Low Side
Maximum Operating Temperature:
+105 °C
Number of Outputs:
1
Length:
10.34mm
Input Logic Compatibility:
CMOS, 5V
Pin Count:
16
Peak Output Current:
2.4A
Mounting Type:
Surface Mount
Maximum Operating Supply Voltage:
5.5 V
Driver Configuration:
Inverting, Non-Inverting
Number of Drivers:
1
Height:
2.34mm
Minimum Operating Temperature:
-40 °C
Rise Time:
800ns
RoHs Compliant
Checking for live stock

This is Half Bridge MOSFET Power Driver 2.4A 4.5 → 5.5 V DSO-16-15 16-Pin manufactured by Infineon. The manufacturer part number is 1ED020I12-F2. The given dimensions of the product include 10.34 x 7.52 x 2.34mm. In addition, it has a/an independent high and low sides dependency . Furthermore, the product is 7.52mm wide. Its fall time is about 600ns . It contains a/an half bridge type bridge . While its minimum operating supply voltage is 4.5 v. The package is a sort of dso-16-15. It has a/an high and low side type driver . It has a maximum operating temperature of +105 °c. Additionally, the product is supplied with 1 outputs. Its accurate length is 10.34mm. Moreover, it has a cmos, 5v input logic compatibility . It contains 16 pins. It offers a standard 2.4a peak output current . The product is available in surface mount configuration. It has 5.5 v maximum operating supply voltage. Moreover, it has a/an inverting, non-inverting driver configuration . Number of Drivers equals 1. In addition, the height is 2.34mm. Whereas, the minimum operating temperature of the product is -40 °c. Whereas, the rise time is 800ns .

pdf icon
1ED020I12-F2 Single IGBT Driver IC(Technical Reference)
