Category:
Power MOSFET
Dimensions:
10.67 x 15.01 x 4.83mm
Maximum Continuous Drain Current:
195 A
Transistor Material:
Si
Width:
15.01mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
150 V
Maximum Gate Threshold Voltage:
5V
Maximum Drain Source Resistance:
12.1 mΩ
Package Type:
TO-262
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
3V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
77 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
5270 pF @ 50 V
Length:
10.67mm
Pin Count:
3
Typical Turn-Off Delay Time:
41 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
375 W
Series:
HEXFET
Maximum Gate Source Voltage:
±20 V
Height:
4.83mm
Typical Turn-On Delay Time:
18 ns
Minimum Operating Temperature:
-55 °C

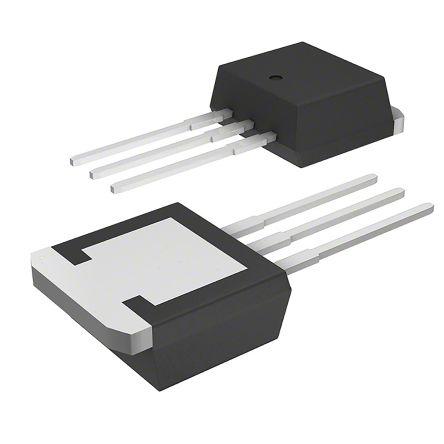

This is N-channel MOSFET 195 A 150 V HEXFET 3-Pin TO-262 manufactured by Infineon. The manufacturer part number is IRFSL4115PBF. It is of power mosfet category . The given dimensions of the product include 10.67 x 15.01 x 4.83mm. While 195 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 15.01mm wide. The product offers single transistor configuration. It has a maximum of 150 v drain source voltage. The product carries 5v of maximum gate threshold voltage. It provides up to 12.1 mω maximum drain source resistance. The package is a sort of to-262. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 3v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 77 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 5270 pf @ 50 v . Its accurate length is 10.67mm. It contains 3 pins. Whereas, its typical turn-off delay time is about 41 ns . The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 375 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of ±20 v. In addition, the height is 4.83mm. In addition, it has a typical 18 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c.
