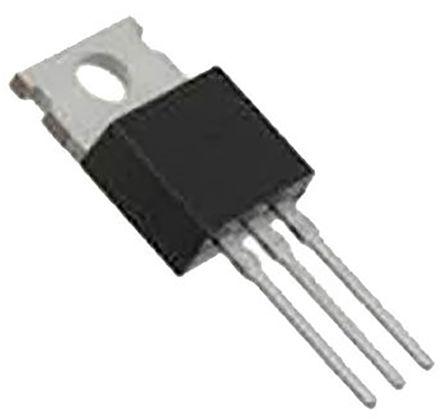

SGP02N120 Infineon IGBT, 2 A 1200 V, 3-Pin TO-220

SGP02N120 Infineon IGBT, 2 A 1200 V, 3-Pin TO-220
SGP02N120
Infineon

Product Information

Dimensions:
8.5 x 4.4 x 9.25mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
62 W
Maximum Continuous Collector Current:
2 A
Maximum Collector Emitter Voltage:
1200 V
Height:
9.25mm
Width:
4.4mm
Length:
8.5mm
Maximum Gate Emitter Voltage:
±20V
Package Type:
TO-220
Minimum Operating Temperature:
-55 °C
Switching Speed:
1MHz
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is IGBT 2 A 1200 V 3-Pin TO-220 manufactured by Infineon. The manufacturer part number is SGP02N120. The given dimensions of the product include 8.5 x 4.4 x 9.25mm. The product is available in through hole configuration. Provides up to 62 w maximum power dissipation. The product has a maximum 2 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). In addition, the height is 9.25mm. Furthermore, the product is 4.4mm wide. Its accurate length is 8.5mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of to-220. Whereas, the minimum operating temperature of the product is -55 °c. It has about 1mhz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
SGP02N120 Fast IGBT in NPT-technology Data Sheet(Technical Reference)
