Category:
Power MOSFET
Dimensions:
10.36 x 4.52 x 9.45mm
Maximum Continuous Drain Current:
100 A
Transistor Material:
Si
Width:
4.52mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
100 V
Maximum Gate Threshold Voltage:
4V

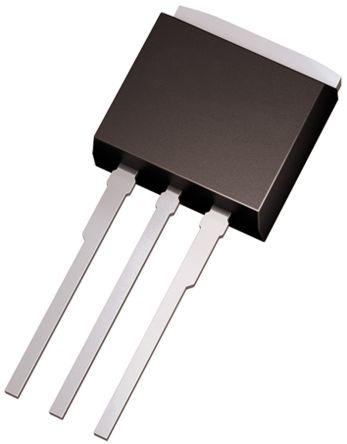

Package Type:
TO-262
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
135 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
8900 pF @ 25 V
Length:
10.36mm
Pin Count:
3
Typical Turn-Off Delay Time:
60 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
300 W
Series:
OptiMOS T
Maximum Gate Source Voltage:
±20 V
Height:
9.45mm
Typical Turn-On Delay Time:
34 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
4.8 mΩ
