Dimensions:
10.31 x 9.45 x 4.57mm
Maximum Continuous Drain Current:
180 A
Transistor Material:
Si
Width:
9.45mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
40 V
Maximum Gate Threshold Voltage:
2V

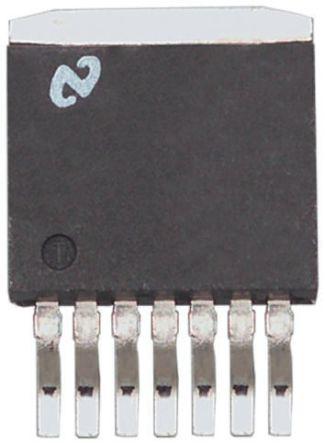

Package Type:
TO-263
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
260 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
22000 pF @ 20 V
Length:
10.31mm
Pin Count:
7
Typical Turn-Off Delay Time:
106 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
250 W
Series:
OptiMOS 3
Maximum Gate Source Voltage:
±20 V
Height:
4.57mm
Typical Turn-On Delay Time:
25 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
1.4 mΩ
