Category:
Power MOSFET
Dimensions:
10.65 x 4.85 x 9.83mm
Maximum Continuous Drain Current:
23 A
Transistor Material:
Si
Width:
4.85mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
550 V
Maximum Gate Threshold Voltage:
3.5V
Package Type:
TO-220FP
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2.5V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
48 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
2540 pF@ 100 V
Length:
10.65mm
Pin Count:
3
Typical Turn-Off Delay Time:
80 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
34 W
Series:
CoolMOS CP
Maximum Gate Source Voltage:
±20 V
Height:
9.83mm
Typical Turn-On Delay Time:
35 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
140 mΩ

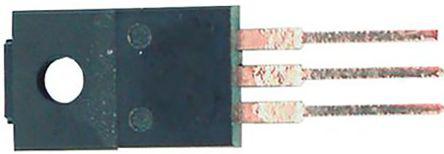

This is N-channel MOSFET 23 A 550 V CoolMOS CP 3-Pin TO-220FP manufactured by Infineon. The manufacturer part number is IPA50R140CP. It is of power mosfet category . The given dimensions of the product include 10.65 x 4.85 x 9.83mm. While 23 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.85mm wide. The product offers single transistor configuration. It has a maximum of 550 v drain source voltage. The product carries 3.5v of maximum gate threshold voltage. The package is a sort of to-220fp. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2.5v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 48 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 2540 pf@ 100 v . Its accurate length is 10.65mm. It contains 3 pins. Whereas, its typical turn-off delay time is about 80 ns . The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 34 w maximum power dissipation. The product coolmos cp, is a highly preferred choice for users. It features a maximum gate source voltage of ±20 v. In addition, the height is 9.83mm. In addition, it has a typical 35 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 140 mω maximum drain source resistance.
