Category:
Small Signal
Dimensions:
2.9 x 0.1 x 1.3mm
Maximum Continuous Drain Current:
2.5 A
Transistor Material:
Si
Width:
0.1mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
20 V
Maximum Gate Threshold Voltage:
1.2V

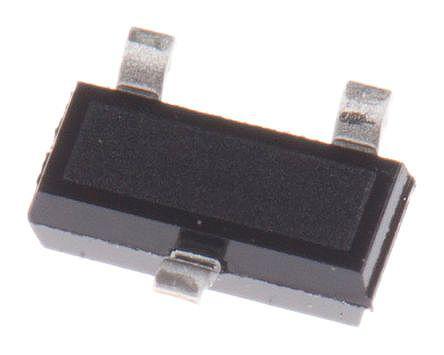

Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.7V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
2.1 nC @ 4.5 V
Channel Type:
N
Typical Input Capacitance @ Vds:
315 pF @ 10 V
Length:
2.9mm
Pin Count:
3
Forward Transconductance:
8.5S
Typical Turn-Off Delay Time:
11 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
0.5 W
Series:
OptiMOS 2
Maximum Gate Source Voltage:
±12 V
Height:
1.3mm
Typical Turn-On Delay Time:
5.8 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.1V
Maximum Drain Source Resistance:
85 mΩ
