Category:
Power MOSFET
Dimensions:
6.73 x 2.39 x 6.22mm
Maximum Continuous Drain Current:
71 A
Width:
2.39mm
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
3.7V
Maximum Drain Source Resistance:
7.9 mΩ
Package Type:
DPAK (TO-252)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2.1V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
58 nC @ 20 V
Channel Type:
N
Typical Input Capacitance @ Vds:
3020 pF @ 25 V
Length:
6.73mm
Pin Count:
3
Forward Transconductance:
56S
Typical Turn-Off Delay Time:
36 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
99 W
Series:
HEXFET
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
6.22mm
Typical Turn-On Delay Time:
8.1 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V

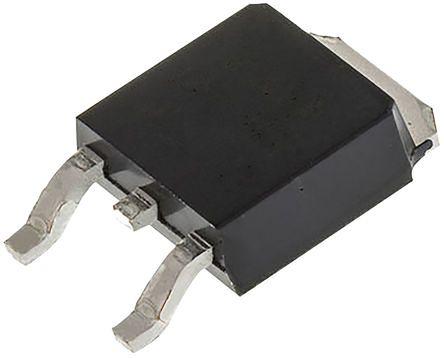

This is N-channel MOSFET 71 A 60 V HEXFET 3-Pin DPAK manufactured by Infineon. The manufacturer part number is IRFR7546PBF. It is of power mosfet category . The given dimensions of the product include 6.73 x 2.39 x 6.22mm. While 71 a of maximum continuous drain current. Furthermore, the product is 2.39mm wide. It has a maximum of 60 v drain source voltage. The product carries 3.7v of maximum gate threshold voltage. It provides up to 7.9 mω maximum drain source resistance. The package is a sort of dpak (to-252). It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2.1v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 58 nc @ 20 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 3020 pf @ 25 v . Its accurate length is 6.73mm. It contains 3 pins. The forward transconductance is 56s . Whereas, its typical turn-off delay time is about 36 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 99 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 6.22mm. In addition, it has a typical 8.1 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v .
