Category:
Power MOSFET
Dimensions:
10.67 x 4.83 x 9.65mm
Maximum Continuous Drain Current:
240 A, 295 A
Transistor Material:
Si
Width:
4.83mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
40 V
Maximum Gate Threshold Voltage:
4V

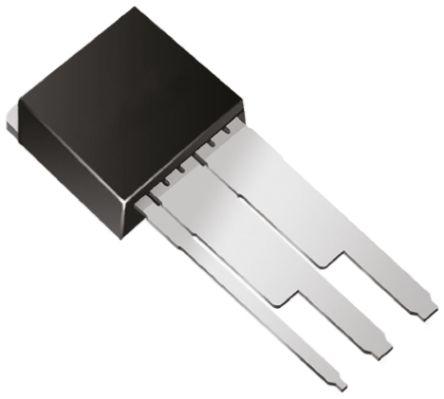

Package Type:
TO-262WL
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
150 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
7978 pF@ 25 V
Length:
10.67mm
Pin Count:
3
Typical Turn-Off Delay Time:
71 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
300 W
Series:
HEXFET
Maximum Gate Source Voltage:
±20 V
Height:
9.65mm
Typical Turn-On Delay Time:
19 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
1.8 mΩ
