Dimensions:
5.35 x 6.1 x 1.1mm
Maximum Continuous Drain Current:
55 A
Transistor Material:
Si
Width:
6.1mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
80 V
Maximum Gate Threshold Voltage:
3.5V

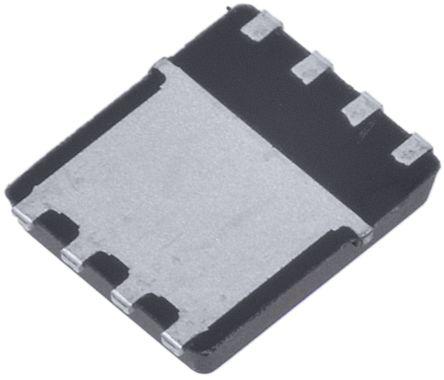

Package Type:
TDSON
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
19 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1430 pF @ 40 V
Length:
5.35mm
Pin Count:
8
Typical Turn-Off Delay Time:
19 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
66 W
Series:
OptiMOS 3
Maximum Gate Source Voltage:
±20 V
Height:
1.1mm
Typical Turn-On Delay Time:
12 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
24 mΩ
