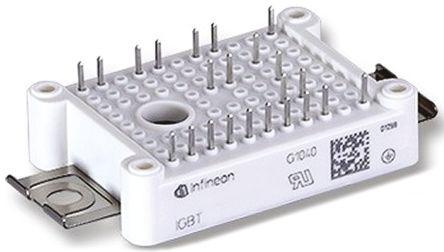

Infineon FS25R12W1T4_B11, EASY1B Common Collector IGBT Module, 45 A max, 1200 V, PCB Mount

Enrgtech Part No: ET13874534
|
Manufacturer Part No:
FS25R12W1T4_B11
|
Manufacturer: Infineon

FS25R12W1T4_B11 Infineon , EASY1B Common Collector IGBT Module, 45 A max, 1200 V, PCB Mount

Product Information

Configuration:

Common Collector

Dimensions:

48 x 33.8 x 12mm

Mounting Type:

PCB Mount

Maximum Power Dissipation:

205 W

Maximum Continuous Collector Current:

45 A

Maximum Collector Emitter Voltage:

1200 V

Height:

12mm

Width:

33.8mm

Length:

48mm

Maximum Gate Emitter Voltage:

±20V

Package Type:

EASY1B

Minimum Operating Temperature:

-40 °C

Checking for live stock

This is EASY1B Common Collector IGBT Module 45 A max 1200 V PCB Mount manufactured by Infineon. The manufacturer part number is FS25R12W1T4_B11. The product is available in common collector configuration. The given dimensions of the product include 48 x 33.8 x 12mm. The product is available in pcb mount configuration. Provides up to 205 w maximum power dissipation. The product has a maximum 45 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). In addition, the height is 12mm. Furthermore, the product is 33.8mm wide. Its accurate length is 48mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of easy1b. Whereas, the minimum operating temperature of the product is -40 °c. It has about 1mhz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 22 pins. The product offers 3 phase transistor configuration.

Explanation Guide to Infineon's Bxx Suffixes(Technical Reference)

FS25R12W1T4_B11, IGBT-Module(Technical Reference)
