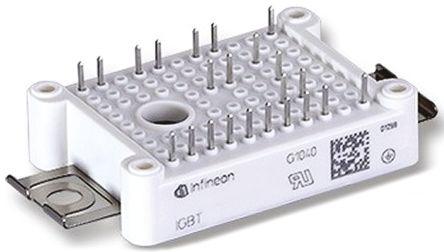

Infineon FS50R07W1E3_B11A, EASY1B Common Collector IGBT Module, 70 A max, 650 V, PCB Mount

FS50R07W1E3_B11A Infineon , EASY1B Common Collector IGBT Module, 70 A max, 650 V, PCB Mount
Infineon

Product Information

Configuration:
Common Collector
Dimensions:
48 x 33.8 x 12mm
Mounting Type:
PCB Mount
Maximum Power Dissipation:
205 W
Maximum Continuous Collector Current:
70 A
Maximum Collector Emitter Voltage:
650 V
Height:
12mm
Width:
33.8mm
Length:
48mm
Maximum Gate Emitter Voltage:
±20V
Package Type:
EASY1B
Minimum Operating Temperature:
-40 °C
Switching Speed:
1MHz
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
26
Transistor Configuration:
3 Phase
RoHs Compliant
Checking for live stock

This is EASY1B Common Collector IGBT Module 70 A max 650 V PCB Mount manufactured by Infineon. The manufacturer part number is FS50R07W1E3_B11A. The product is available in common collector configuration. The given dimensions of the product include 48 x 33.8 x 12mm. The product is available in pcb mount configuration. Provides up to 205 w maximum power dissipation. The product has a maximum 70 a continuous collector current . Whereas features a 650 v of collector emitter voltage (max). In addition, the height is 12mm. Furthermore, the product is 33.8mm wide. Its accurate length is 48mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of easy1b. Whereas, the minimum operating temperature of the product is -40 °c. It has about 1mhz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 26 pins. The product offers 3 phase transistor configuration.

pdf icon
FS50R07W1E3_B11A, IGBT-Module(Technical Reference)
