Category:
Power MOSFET
Dimensions:
5.15 x 6.15 x 1mm
Maximum Continuous Drain Current:
20 A
Transistor Material:
Si
Width:
6.15mm
Transistor Configuration:
Isolated
Maximum Drain Source Voltage:
40 V
Maximum Gate Threshold Voltage:
2.2V
Package Type:
TDSON
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
1.2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
30 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
2350 pF @ 25 V
Length:
5.15mm
Pin Count:
8
Typical Turn-Off Delay Time:
40 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
54 W
Series:
OptiMOS T2
Maximum Gate Source Voltage:
±16 V
Height:
1mm
Typical Turn-On Delay Time:
7 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
10.9 mΩ

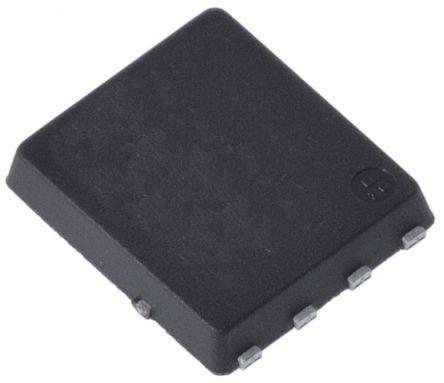

This is Dual N-channel MOSFET 20 A 40 V OptiMOS T2 8-Pin TDSON manufactured by Infineon. The manufacturer part number is IPG20N04S4L-08. It is of power mosfet category . The given dimensions of the product include 5.15 x 6.15 x 1mm. While 20 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 6.15mm wide. The product offers isolated transistor configuration. It has a maximum of 40 v drain source voltage. The product carries 2.2v of maximum gate threshold voltage. The package is a sort of tdson. It consists of 2 elements per chip. Whereas its minimum gate threshold voltage includes 1.2v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 30 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 2350 pf @ 25 v . Its accurate length is 5.15mm. It contains 8 pins. Whereas, its typical turn-off delay time is about 40 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 54 w maximum power dissipation. The product optimos t2, is a highly preferred choice for users. It features a maximum gate source voltage of ±16 v. In addition, the height is 1mm. In addition, it has a typical 7 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 10.9 mω maximum drain source resistance.
