Category:
Power MOSFET
Dimensions:
10 x 4.4 x 9.25mm
Maximum Continuous Drain Current:
80 A
Transistor Material:
Si
Width:
4.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
2V

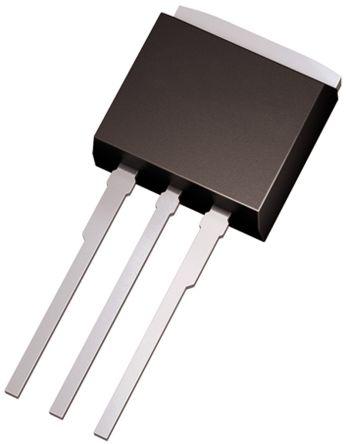

Package Type:
TO-262
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
125 nC @ 10 V
Channel Type:
P
Typical Input Capacitance @ Vds:
8670 pF @ -25 V
Length:
10mm
Pin Count:
3
Typical Turn-Off Delay Time:
140 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
137 W
Series:
OptiMOS P
Maximum Gate Source Voltage:
-16 → +5 V
Height:
9.25mm
Typical Turn-On Delay Time:
17 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
7 mΩ
