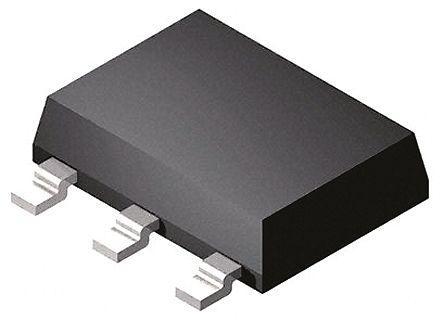

Infineon IRFL024NPBF N-channel MOSFET, 4 A, 55 V HEXFET, 3+Tab-Pin SOT-223

IRFL024NPBF Infineon  N-channel MOSFET, 4 A, 55 V HEXFET, 3+Tab-Pin SOT-223
Infineon

Product Information

Category:
Power MOSFET
Dimensions:
6.7 x 3.7 x 1.8mm
Maximum Continuous Drain Current:
4 A
Transistor Material:
Si
Width:
3.7mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
55 V
Maximum Gate Threshold Voltage:
4V
Package Type:
SOT-223
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
18.3 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
400 pF @ 25 V
Length:
6.7mm
Pin Count:
3+Tab
Typical Turn-Off Delay Time:
22.2 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
2.1 W
Series:
HEXFET
Maximum Gate Source Voltage:
±20 V
Height:
1.8mm
Typical Turn-On Delay Time:
8.1 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
75 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 4 A 55 V HEXFET 3+Tab-Pin SOT-223 manufactured by Infineon. The manufacturer part number is IRFL024NPBF. It is of power mosfet category . The given dimensions of the product include 6.7 x 3.7 x 1.8mm. While 4 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.7mm wide. The product offers single transistor configuration. It has a maximum of 55 v drain source voltage. The product carries 4v of maximum gate threshold voltage. The package is a sort of sot-223. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 18.3 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 400 pf @ 25 v . Its accurate length is 6.7mm. It contains 3+tab pins. Whereas, its typical turn-off delay time is about 22.2 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 2.1 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of ±20 v. In addition, the height is 1.8mm. In addition, it has a typical 8.1 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 75 mω maximum drain source resistance.
