Category:
Power MOSFET
Dimensions:
5 x 4 x 1.5mm
Maximum Continuous Drain Current:
3.7 A
Transistor Material:
Si
Width:
4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
200 V
Maximum Gate Threshold Voltage:
5V
Package Type:
SOIC
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
3V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
29 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1750 pF @ 100 V
Length:
5mm
Pin Count:
8
Typical Turn-Off Delay Time:
14 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
2.5 W
Series:
HEXFET
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.5mm
Typical Turn-On Delay Time:
7.1 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
78 mΩ

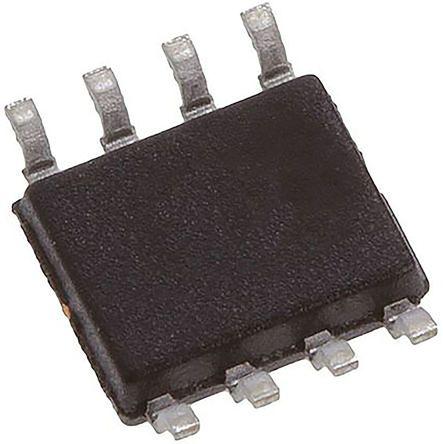

This is N-channel MOSFET 3.7 A 200 V HEXFET 8-Pin SOIC manufactured by Infineon. The manufacturer part number is IRF7820PBF. It is of power mosfet category . The given dimensions of the product include 5 x 4 x 1.5mm. While 3.7 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4mm wide. The product offers single transistor configuration. It has a maximum of 200 v drain source voltage. The product carries 5v of maximum gate threshold voltage. The package is a sort of soic. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 3v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 29 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 1750 pf @ 100 v . Its accurate length is 5mm. It contains 8 pins. Whereas, its typical turn-off delay time is about 14 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 2.5 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 1.5mm. In addition, it has a typical 7.1 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 78 mω maximum drain source resistance.
