Category:
Power MOSFET
Dimensions:
10.67 x 15.01 x 4.83mm
Maximum Continuous Drain Current:
340 A
Transistor Material:
Si
Width:
15.01mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
40 V
Maximum Gate Threshold Voltage:
4V
Package Type:

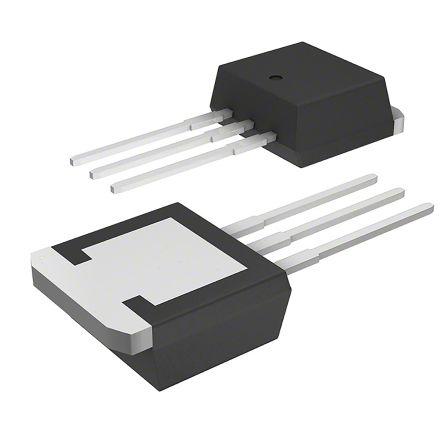

TO-262
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
160 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
9200 pF @ 25 V
Length:
10.67mm
Pin Count:
3
Typical Turn-Off Delay Time:
90 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
380 W
Series:
HEXFET
Maximum Gate Source Voltage:
±20 V
Height:
4.83mm
Typical Turn-On Delay Time:
23 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
1.75 mΩ
