Bi-Directional TVS Diode DFN

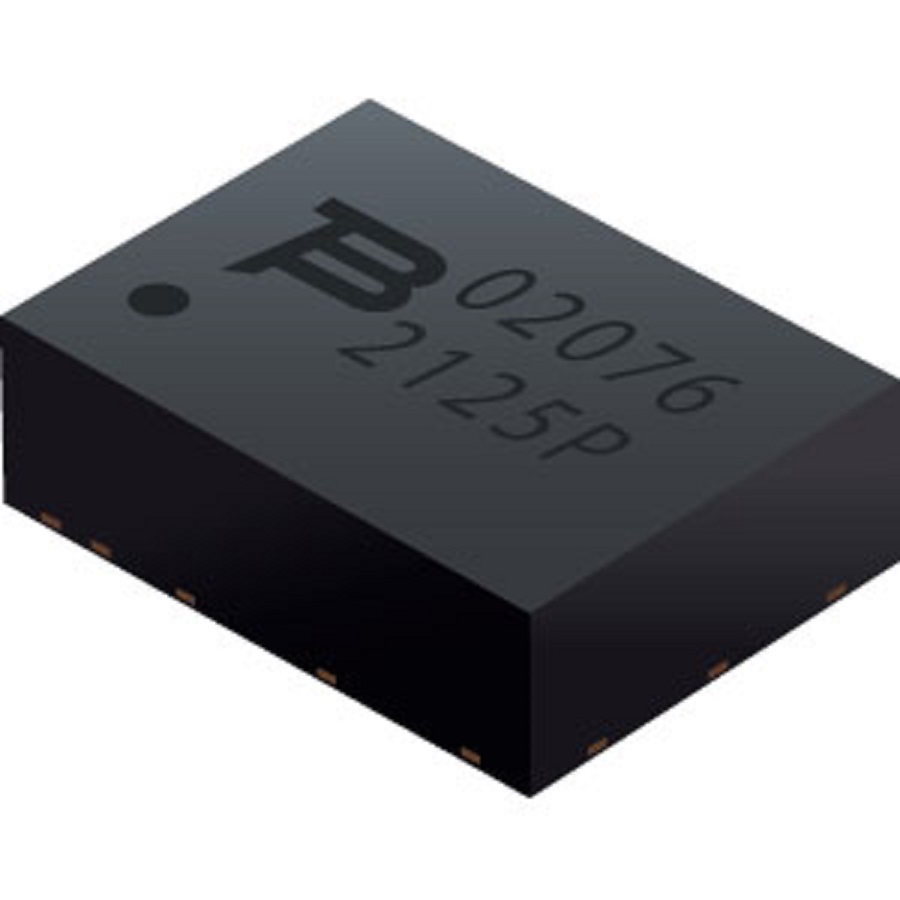

PTVS2-076C-H Bi-Directional TVS Diode DFN
PTVS2-076C-H Bi-Directional TVS Diode DFN
Bourns

Product Information

Direction Type:
Bi-Directional
Maximum Peak Pulse Current Ippm:
2kA
Width:
6 mm
Maximum Reverse Stand-off Voltage Vwm:
76V
Diode Configuration:
Bi-Directional
Automotive Standard:
No
Maximum Reverse Leakage Current:
10μA
Clamping Voltage VC:
91V
Package Type:
DFN2
Number of Elements per Chip:
1
Product Type:
TVS Diode
Maximum Operating Temperature:
125°C
ESD Protection:
Yes
Minimum Breakdown Voltage Vbr:
85V
Length:
2.5mm
Standards/Approvals:
RoHS
Pin Count:
2
Mount Type:
Surface
Series:
PTVS2-076C-H
Height:
8mm
Minimum Operating Temperature:
-55°C
Test Current It:
10mA
RoHs Compliant
Checking for live stock

This is Bi-Directional TVS Diode DFN manufactured by Bourns. The manufacturer part number is PTVS2-076C-H. While is configured as bi-directional. Furthermore, the product is 6 mm wide. The diode features a bi-directional configuration. The product complies with automotive standard - no. The product has a maximum 10μa of reverse leakage current. The package is a sort of dfn2. It consists of 1 elements per chip. tvs diode is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. ESD Protected - yes. Its accurate length is 2.5mm. It contains 2 pins. It has a surface type mount . The product ptvs2-076c-h, is a highly preferred choice for users. In addition, the height is 8mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet - PTVS2-076C-H(Technical Reference)
