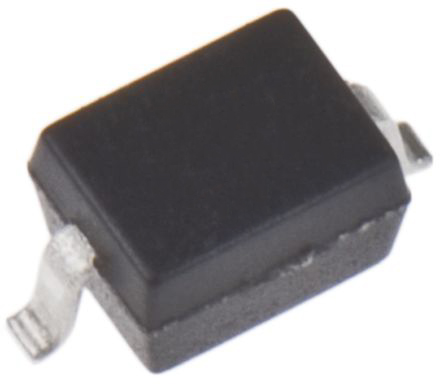

Diodes Inc SD09CQ-7, Bi-Directional TVS Diode, 2-Pin SOD-323

SD09CQ-7 Diodes Inc , Bi-Directional TVS Diode, 2-Pin SOD-323
SD09CQ-7 Diodes Inc , Bi-Directional TVS Diode, 2-Pin SOD-323
DiodesZetex

Product Information

Automotive Standard:
AEC-Q101
Direction Type:
Bi-Directional
Maximum Peak Pulse Current Ippm:
20A
Maximum Reverse Leakage Current:
1μA
ESD Protection:
Yes
Minimum Breakdown Voltage Vbr:
10V
Height:
1.05mm
Clamping Voltage VC:
14.5V
Width:
1.7 mm
Length:
1.3mm
Package Type:
SOD-323
Minimum Operating Temperature:
-55°C
Maximum Reverse Stand-off Voltage Vwm:
9V
Standards/Approvals:
EC 61000-4-2, ISO, RoHS, UL
Peak Pulse Power Dissipation Pppm:
250mW
Product Type:
TVS Diode
Maximum Operating Temperature:
150°C
Pin Count:
2
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is Diodes Inc Bi-Directional TVS Diode 2-Pin SOD-323 manufactured by DiodesZetex. The manufacturer part number is SD09CQ-7. The product complies with automotive standard - aec-q101. While is configured as bi-directional. The product has a maximum 1μa of reverse leakage current. ESD Protected - yes. In addition, the height is 1.05mm. Furthermore, the product is 1.7 mm wide. Its accurate length is 1.3mm. The package is a sort of sod-323. Whereas, the minimum operating temperature of the product is -55°c. tvs diode is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. It contains 2 pins. It has a surface type mount .

pdf icon
Datasheet - SD09CQ-7(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship SD09CQ-7 Internationally to many countries around the world.
Yes. You can also search SD09CQ-7 on website for other similar products.
We accept all major payment methods for all products including ET24135807. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24135807 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24135807.
You can order DiodesZetex brand products with SD09CQ-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc SD09CQ-7, Bi-Directional TVS Diode, 2-Pin SOD-323. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc SD09CQ-7, Bi-Directional TVS Diode, 2-Pin SOD-323.
