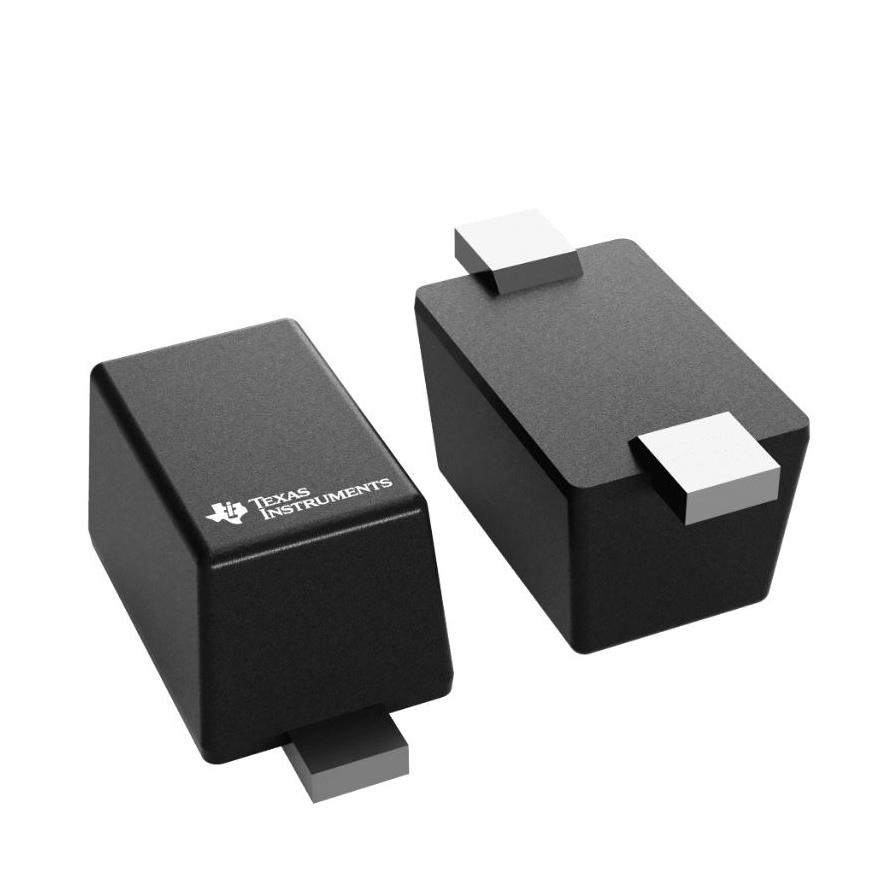

Texas Instruments ESD321DYAR

ESD321DYAR Texas Instruments
Texas Instruments

Product Information

Voltage - Clamping (Max) @ Ipp:
6.3V (Typ)
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TA)
Package / Case:
SC-79, SOD-523
Type:
Zener
edacadModel:
ESD321DYAR Models
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
4.5V
Applications:
USB
edacadModelUrl:
/en/models/17394968
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Unidirectional Channels:
1
standardLeadTime:
12 Weeks
Current - Peak Pulse (10/1000µs):
6A (8/20µs)
Voltage - Reverse Standoff (Typ):
3.6V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-5X3
Capacitance @ Frequency:
0.9pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
40W
Base Product Number:
ESD321
ECCN:
EAR99
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is ESD321DYAR. The maximum clamping voltage is 6.3v (typ). It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 150°c (ta) operating temperature range. Moreover, the product comes in sc-79, sod-523. It comes in zener configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 4.5v. The product is widely employed in usb. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 3 (168 hours). It has 1 unidirectional channels. It has a long 12 weeks standard lead time. The peak pulse of the product is given as 6a (8/20µs). Provide with the typical reverse standoff voltage of 3.6v (max). The product is available in surface mount configuration. sot-5x3 is the supplier device package value. It has a nominal capacitance and frequency values of 0.9pf @ 1mhz. Power Line Protection: no. Furthermore, the peak pulse power of the product is 40w. Moreover, it corresponds to esd321, a base product number of the product. The product is designated with the ear99 code number.
