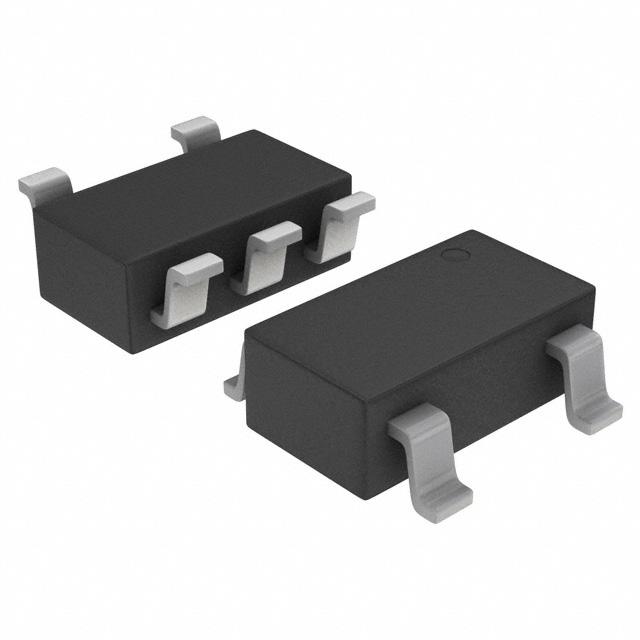

SMC Diode Solutions EGUARD0503F
Product Information
Voltage - Clamping (Max) @ Ipp:
25V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TJ)
Package / Case:
5-TSSOP, SC-70-5, SOT-353
Type:
Steering (Rail to Rail)
REACH Status:
REACH Affected
Voltage - Breakdown (Min):
6V
Applications:
USB OTG
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
4
standardLeadTime:
14 Weeks
Current - Peak Pulse (10/1000µs):
6A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-353
Capacitance @ Frequency:
3pF @ 1MHz
Power Line Protection:
Yes
Power - Peak Pulse:
150W
Base Product Number:
EGUARD0503
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search EGUARD0503F on website for other similar products.
We accept all major payment methods for all products including ET22832102. Please check your shopping cart at the time of order.
You can order SMC Diode Solutions brand products with EGUARD0503F directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of SMC Diode Solutions EGUARD0503F. You can also check on our website or by contacting our customer support team for further order details on SMC Diode Solutions EGUARD0503F.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22832102 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "SMC Diode Solutions" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22832102.
Yes. We ship EGUARD0503F Internationally to many countries around the world.
This is manufactured by SMC Diode Solutions. The manufacturer part number is EGUARD0503F. The maximum clamping voltage is 25v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in 5-tssop, sc-70-5, sot-353. It comes in steering (rail to rail) configuration. In addition, it is reach affected. The minimum breakdown voltage is 6v. The product is widely employed in usb otg. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). It has 4 unidirectional channels. It has a long 14 weeks standard lead time. The peak pulse of the product is given as 6a (8/20µs). Provide with the typical reverse standoff voltage of 5v (max). The product is available in surface mount configuration. sot-353 is the supplier device package value. It has a nominal capacitance and frequency values of 3pf @ 1mhz. Power Line Protection: yes. Furthermore, the peak pulse power of the product is 150w. Moreover, it corresponds to eguard0503, a base product number of the product. The product is designated with the ear99 code number.
