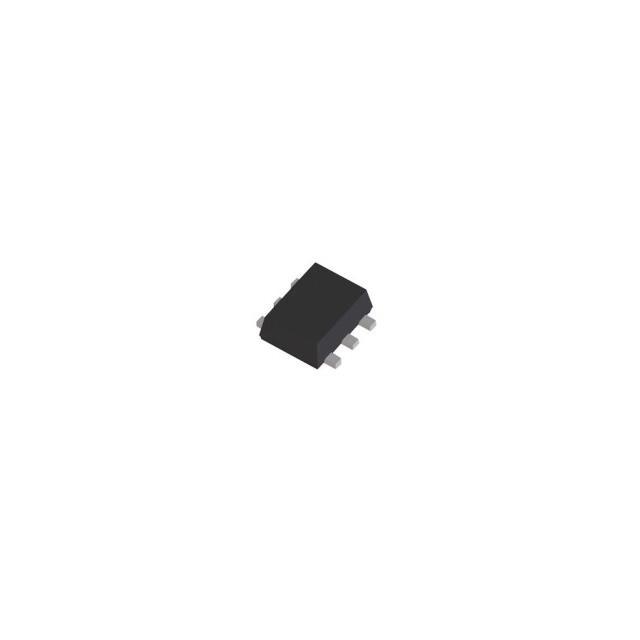

SMC Diode Solutions EGUARD0502A
Product Information
Voltage - Clamping (Max) @ Ipp:
16V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TJ)
Package / Case:
SOT-563, SOT-666
Type:
Steering (Rail to Rail)
REACH Status:
REACH Affected
Voltage - Breakdown (Min):
6V
Applications:
DVI, Ethernet, HDMI, USB
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
2
standardLeadTime:
14 Weeks
Current - Peak Pulse (10/1000µs):
3A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-563
Capacitance @ Frequency:
0.9pF @ 1MHz (Max)
Power Line Protection:
Yes
Power - Peak Pulse:
50W
Base Product Number:
EGUARD0502
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search EGUARD0502A on website for other similar products.
We accept all major payment methods for all products including ET22832100. Please check your shopping cart at the time of order.
You can order SMC Diode Solutions brand products with EGUARD0502A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of SMC Diode Solutions EGUARD0502A. You can also check on our website or by contacting our customer support team for further order details on SMC Diode Solutions EGUARD0502A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22832100 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "SMC Diode Solutions" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22832100.
Yes. We ship EGUARD0502A Internationally to many countries around the world.
This is manufactured by SMC Diode Solutions. The manufacturer part number is EGUARD0502A. The maximum clamping voltage is 16v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in sot-563, sot-666. It comes in steering (rail to rail) configuration. In addition, it is reach affected. The minimum breakdown voltage is 6v. The product is widely employed in dvi, ethernet, hdmi, usb. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). It has 2 unidirectional channels. It has a long 14 weeks standard lead time. The peak pulse of the product is given as 3a (8/20µs). Provide with the typical reverse standoff voltage of 5v (max). The product is available in surface mount configuration. sot-563 is the supplier device package value. It has a nominal capacitance and frequency values of 0.9pf @ 1mhz (max). Power Line Protection: yes. Furthermore, the peak pulse power of the product is 50w. Moreover, it corresponds to eguard0502, a base product number of the product. The product is designated with the ear99 code number.
