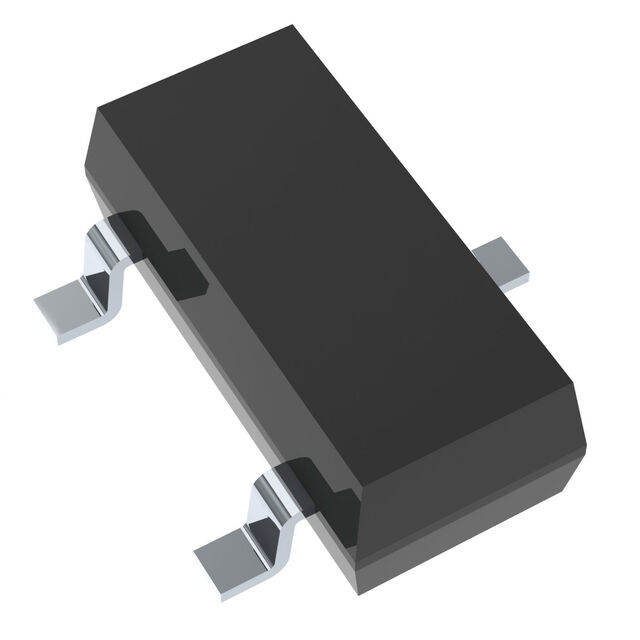

WeEn Semiconductors ESDALD05UE2X
Product Information
Voltage - Clamping (Max) @ Ipp:
15V
HTSUS:
8541.10.0080
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-236-3, SC-59, SOT-23-3
Type:
Zener
Voltage - Breakdown (Min):
6V
Applications:
DVI, HDMI, USB
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
2
standardLeadTime:
20 Weeks
Current - Peak Pulse (10/1000µs):
4A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-23-3L
Capacitance @ Frequency:
0.5pF @ 1MHz
Power Line Protection:
Yes
Power - Peak Pulse:
60W
Base Product Number:
ESDALD05
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ESDALD05UE2X on website for other similar products.
We accept all major payment methods for all products including ET22623791. Please check your shopping cart at the time of order.
You can order WeEn Semiconductors brand products with ESDALD05UE2X directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of WeEn Semiconductors ESDALD05UE2X. You can also check on our website or by contacting our customer support team for further order details on WeEn Semiconductors ESDALD05UE2X.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22623791 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "WeEn Semiconductors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22623791.
Yes. We ship ESDALD05UE2X Internationally to many countries around the world.
This is manufactured by WeEn Semiconductors. The manufacturer part number is ESDALD05UE2X. The maximum clamping voltage is 15v. It is assigned with possible HTSUS value of 8541.10.0080. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-236-3, sc-59, sot-23-3. It comes in zener configuration. The minimum breakdown voltage is 6v. The product is widely employed in dvi, hdmi, usb. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). It has 2 unidirectional channels. It has a long 20 weeks standard lead time. The peak pulse of the product is given as 4a (8/20µs). Provide with the typical reverse standoff voltage of 5v (max). The product is available in surface mount configuration. sot-23-3l is the supplier device package value. It has a nominal capacitance and frequency values of 0.5pf @ 1mhz. Power Line Protection: yes. Furthermore, the peak pulse power of the product is 60w. Moreover, it corresponds to esdald05, a base product number of the product. The product is designated with the ear99 code number.
