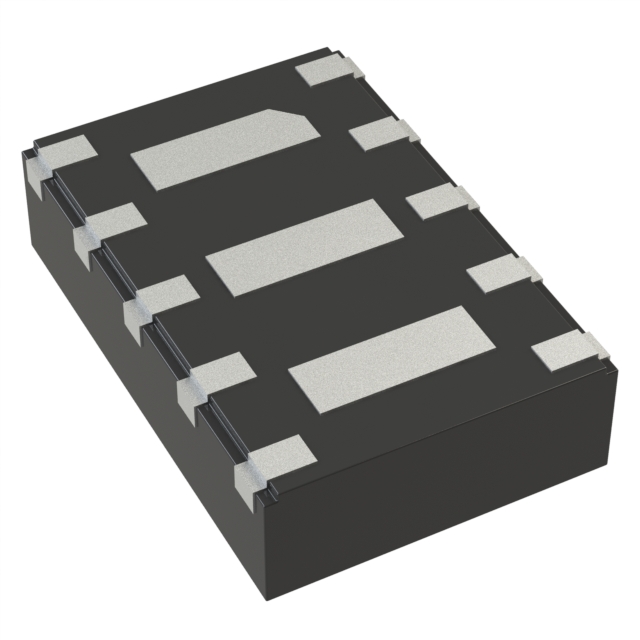

onsemi SZNSP8814LMTWTAG
Product Information
Voltage - Clamping (Max) @ Ipp:
15V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
10-WDFN
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
3.2V
Applications:
Ethernet
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Qualification:
AEC-Q101
Unidirectional Channels:
4
Current - Peak Pulse (10/1000µs):
35A (8/20µs)
Voltage - Reverse Standoff (Typ):
3V (Max)
Mounting Type:
Surface Mount, Wettable Flank
Grade:
Automotive
Series:
-
Supplier Device Package:
10-WDFNW (3x2)
Capacitance @ Frequency:
2pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search SZNSP8814LMTWTAG on website for other similar products.
We accept all major payment methods for all products including ET21919667. Please check your shopping cart at the time of order.
You can order onsemi brand products with SZNSP8814LMTWTAG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi SZNSP8814LMTWTAG. You can also check on our website or by contacting our customer support team for further order details on onsemi SZNSP8814LMTWTAG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21919667 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21919667.
Yes. We ship SZNSP8814LMTWTAG Internationally to many countries around the world.
This is manufactured by onsemi. The manufacturer part number is SZNSP8814LMTWTAG. The maximum clamping voltage is 15v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 10-wdfn. It comes in zener configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 3.2v. The product is widely employed in ethernet. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). It has 4 unidirectional channels. The peak pulse of the product is given as 35a (8/20µs). Provide with the typical reverse standoff voltage of 3v (max). The product is available in surface mount, wettable flank configuration. The product is automotive, a grade of class. 10-wdfnw (3x2) is the supplier device package value. It has a nominal capacitance and frequency values of 2pf @ 1mhz. Power Line Protection: no. The product is designated with the ear99 code number.
