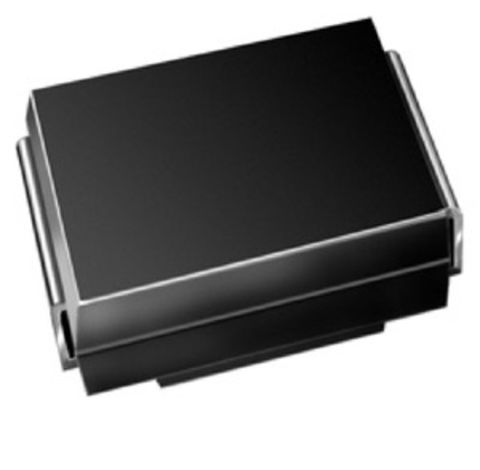

Vishay SMBJ5.0AHE3_A/H, Bi-Directional, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

SMBJ5-0AHE3_A-H Vishay SMBJ5.0AHE3_A/H, Bi-Directional, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
SMBJ5-0AHE3_A-H Vishay SMBJ5.0AHE3_A/H, Bi-Directional, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
Vishay

Product Information

Direction Type:
Bi-Directional, Uni-Directional
Maximum Peak Pulse Current Ippm:
65.2A
Width:
3.94 mm
Maximum Reverse Stand-off Voltage Vwm:
5V
Peak Pulse Power Dissipation Pppm:
600W
Diode Configuration:
Single
Automotive Standard:
AEC-Q101
Maximum Reverse Leakage Current:
800μA
Clamping Voltage VC:
9.2V
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Product Type:
TVS Diode
Maximum Operating Temperature:
150°C
ESD Protection:
Yes
Minimum Breakdown Voltage Vbr:
6.4V
Length:
4.57mm
Standards/Approvals:
No
Pin Count:
2
Mount Type:
Surface
Series:
TRANSZORB TVS
Height:
2.24mm
Minimum Operating Temperature:
-55°C
Test Current It:
10mA
RoHs Compliant
Checking for live stock

This is Bi-Directional Uni-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by Vishay. The manufacturer part number is SMBJ5.0AHE3_A/H. While is configured as bi-directional, uni-directional. Furthermore, the product is 3.94 mm wide. The diode features a single configuration. The product complies with automotive standard - aec-q101. The product has a maximum 800μa of reverse leakage current. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. tvs diode is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. ESD Protected - yes. Its accurate length is 4.57mm. It contains 2 pins. It has a surface type mount . The product transzorb tvs, is a highly preferred choice for users. In addition, the height is 2.24mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet - SMBJ5.0AHE3_A/H(Technical Reference)
