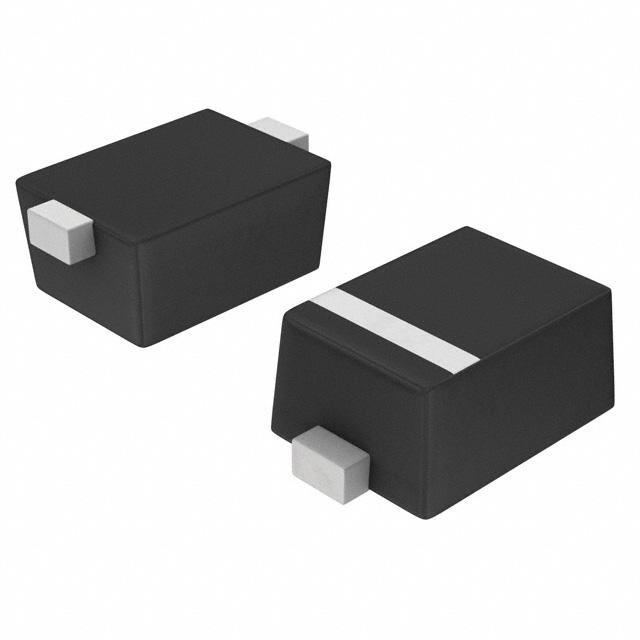

ON Semiconductor ESD9X12ST5G, Uni-Directional TVS Diode, 140W, 2-Pin SOD-923
Product Information
Maximum Peak Pulse Current:
5.9A
Maximum Reverse Stand-off Voltage:
1V
Dimensions:
0.85 x 0.65 x 0.43mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Minimum Breakdown Voltage:
13.5V
ESD Protection:
Yes
Peak Pulse Power Dissipation:
140W
Height:
0.43mm
Width:
0.65mm
Length:
0.85mm
Package Type:
SOD-923
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
1µA
Maximum Clamping Voltage:
23.7V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
Voltage - Clamping (Max) @ Ipp:
23.7V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
SOD-923
Type:
Zener
edacadModel:
ESD9X12ST5G Models
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
13.5V
Applications:
General Purpose
edacadModelUrl:
/en/models/1476614
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
1
standardLeadTime:
9 Weeks
Current - Peak Pulse (10/1000µs):
5.9A (8/20µs)
Voltage - Reverse Standoff (Typ):
12V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOD-923
Capacitance @ Frequency:
30pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
140W
Base Product Number:
ESD9X12
ECCN:
EAR99
