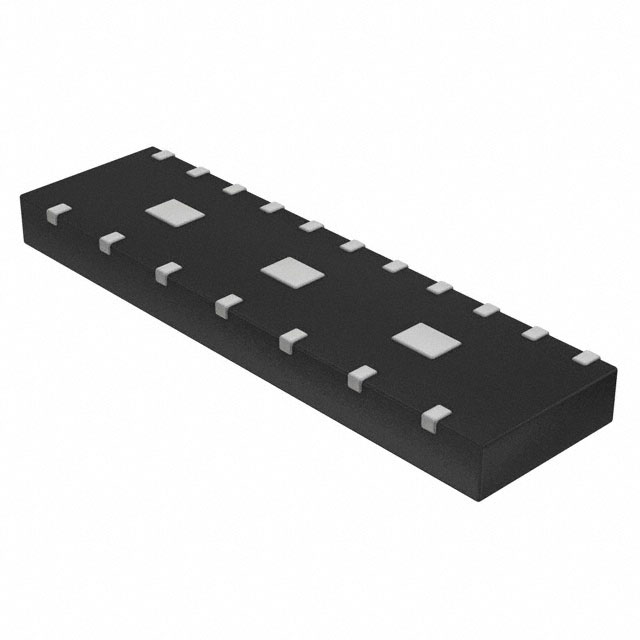

onsemi MG2040MUTAG, 14-Element Uni-Directional TVS Diode, 18-Pin U-DFN5515
Product Information
Maximum Peak Pulse Current:
16A
Maximum Reverse Stand-off Voltage:
5V
Dimensions:
5.5 x 1.5 x 0.5mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+125 °C
Minimum Breakdown Voltage:
5.5V
ESD Protection:
Yes
Height:
0.5mm
Width:
1.5mm
Length:
5.5mm
Package Type:
U-DFN5515
Number of Elements per Chip:
14
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
1µA
Maximum Clamping Voltage:
10V
Diode Configuration:
Common Anode
Pin Count:
18
Test Current:
1mA
Voltage - Clamping (Max) @ Ipp:
10V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TJ)
Package / Case:
18-UFDFN Exposed Pad
Type:
Zener
edacadModel:
MG2040MUTAG Models
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
5.5V
Applications:
HDMI
edacadModelUrl:
/en/models/2797196
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
14
standardLeadTime:
6 Weeks
Current - Peak Pulse (10/1000µs):
1A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
18-UDFN (5.5x1.5)
Capacitance @ Frequency:
0.35pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
-
Base Product Number:
MG2040
ECCN:
EAR99
