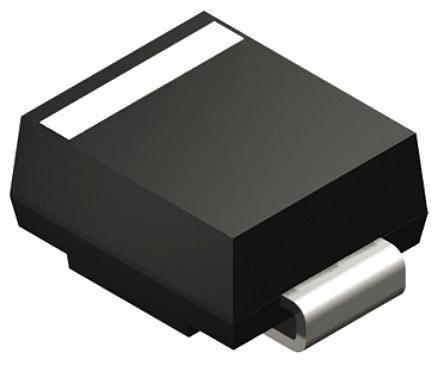

HY Electronic Corp SMBJ36A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
Product Information
Maximum Peak Pulse Current:
10.3A
Maximum Reverse Stand-off Voltage:
36V
Dimensions:
4.7 x 3.94 x 2.24mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Surge Current Rating:
100A
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
5µA
Minimum Breakdown Voltage:
40V
Peak Pulse Power Dissipation:
600W
Height:
2.24mm
Width:
3.94mm
Length:
4.7mm
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
58.1V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
Checking for live stock
FAQs
Yes. You can also search SMBJ36A on website for other similar products.
We accept all major payment methods for all products including ET16893974. Please check your shopping cart at the time of order.
You can order HY Electronic Corp brand products with SMBJ36A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of HY Electronic Corp SMBJ36A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA. You can also check on our website or by contacting our customer support team for further order details on HY Electronic Corp SMBJ36A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16893974 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "HY Electronic Corp" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16893974.
Yes. We ship SMBJ36A Internationally to many countries around the world.
This is Uni-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by HY Electronic Corp. The manufacturer part number is SMBJ36A. It also has 10.3a maximum peak pulse current. While the maximised reverse stand-off voltage includes 36v. The given dimensions of the product include 4.7 x 3.94 x 2.24mm. The product is available in surface mount configuration. While is configured as uni-directional. It has about 100a surge current rating . It has a maximum operating temperature of +150 °c. The product has a maximum 5µa of reverse leakage current. It harbours a 40v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.24mm. Furthermore, the product is 3.94mm wide. Its accurate length is 4.7mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 58.1v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
