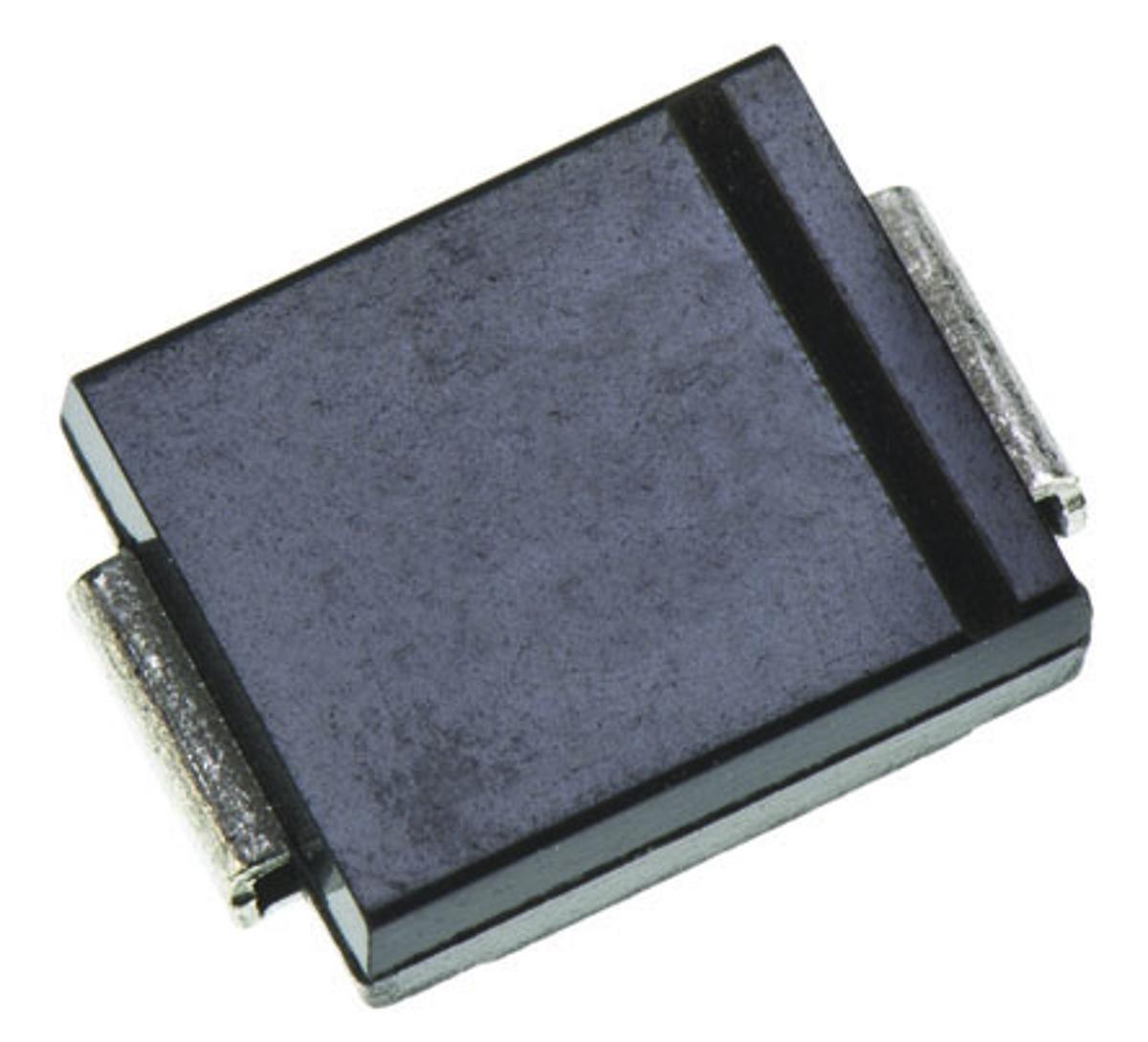

Bourns SMCJ24A-Q, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB
Product Information
Dimensions:
7.11 x 6.22 x 2.41mm
Direction Type:
Uni-Directional
Width:
6.22mm
Maximum Clamping Voltage:
38.9V
Diode Configuration:
Single
Automotive Standard:
AEC-Q101
Test Current:
1mA
Minimum Breakdown Voltage:
26.7V
Surge Current Rating:
38.6 A, 200 A
Maximum Reverse Leakage Current:
1µA
Package Type:
DO-214AB (SMC)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
7.11mm
Pin Count:
2
Peak Pulse Power Dissipation:
1500W
Maximum Reverse Stand-off Voltage:
24V
Mounting Type:
Surface Mount
Height:
2.41mm
Minimum Operating Temperature:
-55 °C
Checking for live stock
FAQs
Yes. You can also search SMCJ24A-Q on website for other similar products.
We accept all major payment methods for all products including ET16754329. Please check your shopping cart at the time of order.
You can order Bourns brand products with SMCJ24A-Q directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Bourns SMCJ24A-Q, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB. You can also check on our website or by contacting our customer support team for further order details on Bourns SMCJ24A-Q, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16754329 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Bourns" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16754329.
Yes. We ship SMCJ24A-Q Internationally to many countries around the world.
This is Uni-Directional TVS Diode 1500W 2-Pin DO-214AB manufactured by Bourns. The manufacturer part number is SMCJ24A-Q. The given dimensions of the product include 7.11 x 6.22 x 2.41mm. While is configured as uni-directional. Furthermore, the product is 6.22mm wide. It is supplied with 38.9v of maximum clamping voltage. The diode features a single configuration. The product complies with automotive standard - aec-q101. In addition, it has 1ma test current. It harbours a 26.7v of minimum breakdown voltage. It has about 38.6 a, 200 a surge current rating . The product has a maximum 1µa of reverse leakage current. The package is a sort of do-214ab (smc). It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. ESD Protected - yes. Its accurate length is 7.11mm. It contains 2 pins. It has 1500w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 24v. The product is available in surface mount configuration. In addition, the height is 2.41mm. Whereas, the minimum operating temperature of the product is -55 °c.
