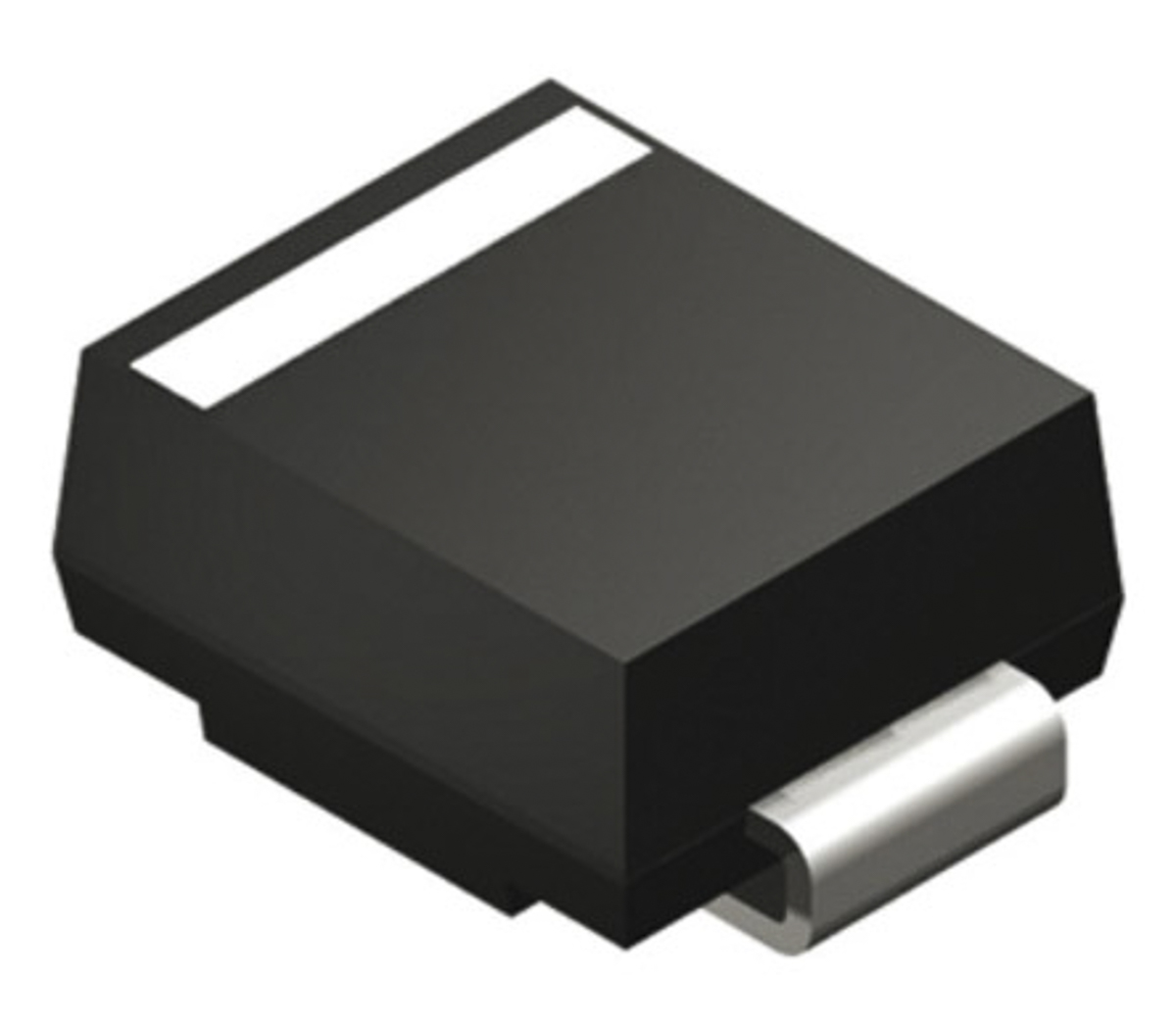

Bourns SMBJ26A-Q, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

SMBJ26A-Q Bourns , Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
Bourns

Product Information

Dimensions:
4.57 x 3.94 x 2.23mm
Direction Type:
Uni-Directional
Width:
3.94mm
Maximum Clamping Voltage:
42.1V
Diode Configuration:
Single
Automotive Standard:
AEC-Q101
Test Current:
1mA
Minimum Breakdown Voltage:
28.9V
Surge Current Rating:
14.3 A, 100 A
Maximum Reverse Leakage Current:
1µA
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
4.57mm
Pin Count:
2
Peak Pulse Power Dissipation:
600W
Maximum Reverse Stand-off Voltage:
26V
Mounting Type:
Surface Mount
Height:
2.23mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by Bourns. The manufacturer part number is SMBJ26A-Q. The given dimensions of the product include 4.57 x 3.94 x 2.23mm. While is configured as uni-directional. Furthermore, the product is 3.94mm wide. It is supplied with 42.1v of maximum clamping voltage. The diode features a single configuration. The product complies with automotive standard - aec-q101. In addition, it has 1ma test current. It harbours a 28.9v of minimum breakdown voltage. It has about 14.3 a, 100 a surge current rating . The product has a maximum 1µa of reverse leakage current. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. ESD Protected - yes. Its accurate length is 4.57mm. It contains 2 pins. It has 600w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 26v. The product is available in surface mount configuration. In addition, the height is 2.23mm. Whereas, the minimum operating temperature of the product is -55 °c.
