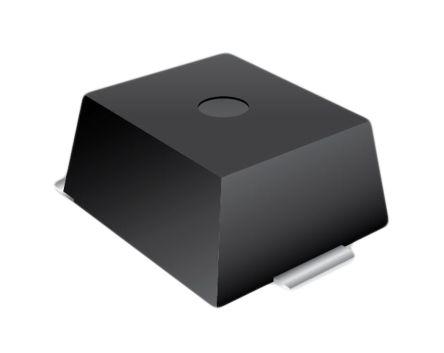

Bourns PTVS10-076C-M, Bi-Directional TVS Diode, 2-Pin SMD2
Product Information
Maximum Peak Pulse Current:
10kA
Maximum Reverse Stand-off Voltage:
76V
Dimensions:
16.05 x 14.6 x 7.24mm
Mounting Type:
Surface Mount
Capacitance:
5.5nF
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+125 °C
Minimum Breakdown Voltage:
95V
RMS Voltage:
1Vrms
Height:
7.24mm
Width:
14.6mm
Length:
16.05mm
Package Type:
SMD2
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Clamping Voltage:
135V
Diode Configuration:
Single
Pin Count:
2
Test Current:
10mA
Checking for live stock
FAQs
Yes. You can also search PTVS10-076C-M on website for other similar products.
We accept all major payment methods for all products including ET16754146. Please check your shopping cart at the time of order.
You can order Bourns brand products with PTVS10-076C-M directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Bourns PTVS10-076C-M, Bi-Directional TVS Diode, 2-Pin SMD2. You can also check on our website or by contacting our customer support team for further order details on Bourns PTVS10-076C-M, Bi-Directional TVS Diode, 2-Pin SMD2.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16754146 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Bourns" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16754146.
Yes. We ship PTVS10-076C-M Internationally to many countries around the world.
This is Bi-Directional TVS Diode 2-Pin SMD2 manufactured by Bourns. The manufacturer part number is PTVS10-076C-M. It also has 10ka maximum peak pulse current. While the maximised reverse stand-off voltage includes 76v. The given dimensions of the product include 16.05 x 14.6 x 7.24mm. The product is available in surface mount configuration. It provides a 5.5nf of capacitance value. While is configured as bi-directional. It has a maximum operating temperature of +125 °c. It harbours a 95v of minimum breakdown voltage. With 1vrms RMS voltage . In addition, the height is 7.24mm. Furthermore, the product is 14.6mm wide. Its accurate length is 16.05mm. The package is a sort of smd2. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is supplied with 135v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 10ma test current.
