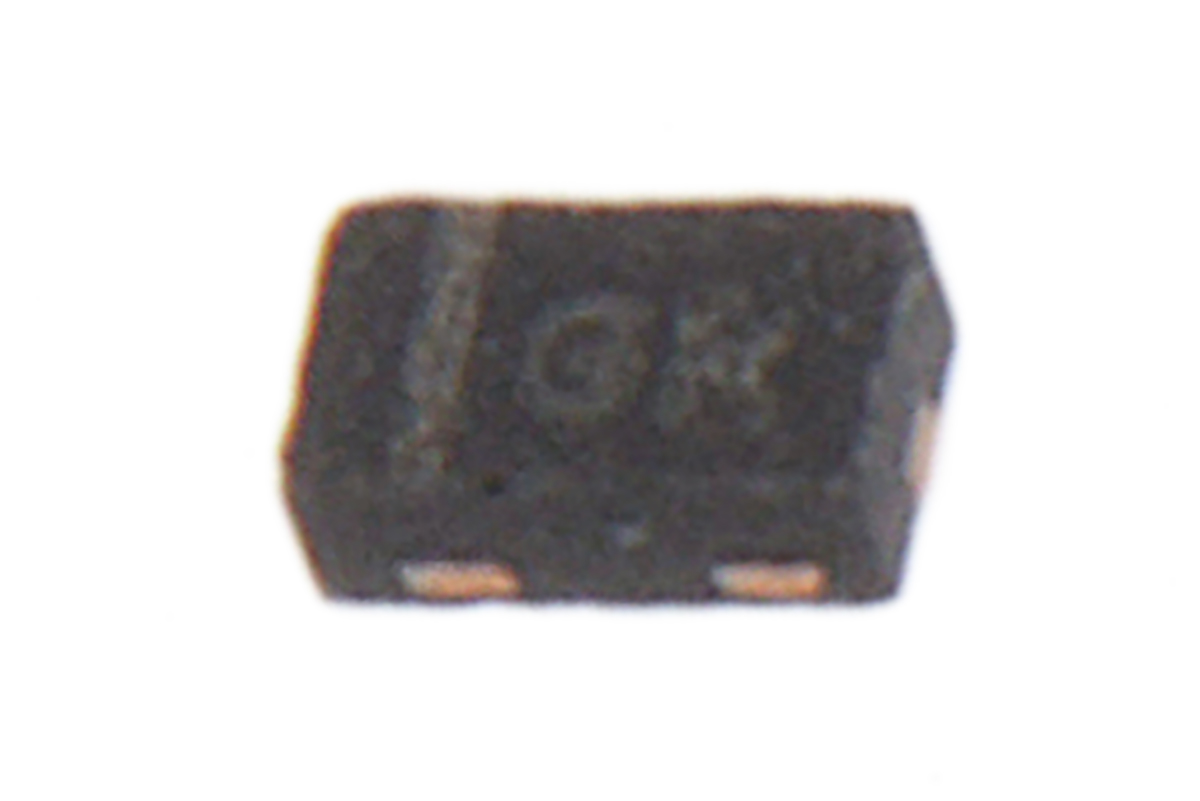

Vishay VBUS05L1-DD1-G-08, Dual Bi-Directional ESD Protection Diode, 34W, 2-Pin LLP1006

VBUS05L1-DD1-G-08 Vishay , Dual Bi-Directional ESD Protection Diode, 34W, 2-Pin LLP1006
VBUS05L1-DD1-G-08
VBUS05L1-DD1-G-08 Vishay , Dual Bi-Directional ESD Protection Diode, 34W, 2-Pin LLP1006
Vishay

Product Information

Maximum Peak Pulse Current:
2A
Maximum Reverse Stand-off Voltage:
5.5V
Dimensions:
1.05 x 0.65 x 0.4mm
Mounting Type:
Surface Mount
Capacitance:
0.4pF
Maximum Operating Temperature:
+125 °C
Maximum Reverse Leakage Current:
50nA
Direction Type:
Bi-Directional
Peak Pulse Power Dissipation:
34W
Height:
0.4mm
Width:
0.65mm
Length:
1.05mm
Package Type:
LLP1006
Number of Elements per Chip:
2
Minimum Operating Temperature:
-40 °C
ESD Protection:
Yes
Maximum Clamping Voltage:
14V
Diode Configuration:
Dual
Pin Count:
2
Minimum Breakdown Voltage:
7V
Test Current:
1mA
Checking for live stock

This is Dual Bi-Directional ESD Protection Diode 34W 2-Pin LLP1006 manufactured by Vishay. The manufacturer part number is VBUS05L1-DD1-G-08. It also has 2a maximum peak pulse current. While the maximised reverse stand-off voltage includes 5.5v. The given dimensions of the product include 1.05 x 0.65 x 0.4mm. The product is available in surface mount configuration. It provides a 0.4pf of capacitance value. It has a maximum operating temperature of +125 °c. The product has a maximum 50na of reverse leakage current. While is configured as bi-directional. It has 34w of peak pulse power dissipation. In addition, the height is 0.4mm. Furthermore, the product is 0.65mm wide. Its accurate length is 1.05mm. The package is a sort of llp1006. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. ESD Protected - yes. It is supplied with 14v of maximum clamping voltage. The diode features a dual configuration. It contains 2 pins. It harbours a 7v of minimum breakdown voltage. In addition, it has 1ma test current.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
VBUS05L1-DD1, Bidirectional Symmetrical (BiSy) Low Capacitance, Single-Line ESD-Protection Diode in LLP1006-2M(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship VBUS05L1-DD1-G-08 Internationally to many countries around the world.
Yes. You can also search VBUS05L1-DD1-G-08 on website for other similar products.
We accept all major payment methods for all products including ET16724096. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16724096 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16724096.
You can order Vishay brand products with VBUS05L1-DD1-G-08 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay VBUS05L1-DD1-G-08, Dual Bi-Directional ESD Protection Diode, 34W, 2-Pin LLP1006. You can also check on our website or by contacting our customer support team for further order details on Vishay VBUS05L1-DD1-G-08, Dual Bi-Directional ESD Protection Diode, 34W, 2-Pin LLP1006.
