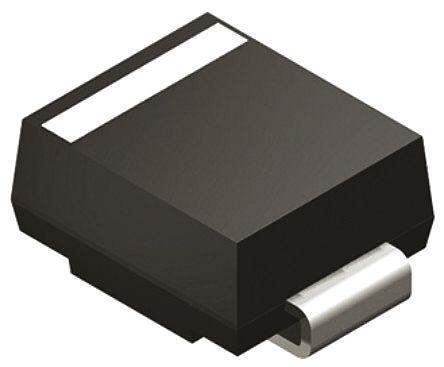

Vishay P6SMB100A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

P6SMB100A-E3-52 Vishay P6SMB100A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
Vishay

Product Information

Maximum Peak Pulse Current:
4.4A
Maximum Reverse Stand-off Voltage:
85.5V
Dimensions:
4.57 x 3.94 x 2.24mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
95V
Peak Pulse Power Dissipation:
600W
Height:
2.24mm
Width:
3.94mm
Length:
4.57mm
Package Type:
DO-214AA (SMB)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Clamping Voltage:
137V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 600W 2-Pin DO-214AA manufactured by Vishay. The manufacturer part number is P6SMB100A-E3/52. It also has 4.4a maximum peak pulse current. While the maximised reverse stand-off voltage includes 85.5v. The given dimensions of the product include 4.57 x 3.94 x 2.24mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 95v of minimum breakdown voltage. It has 600w of peak pulse power dissipation. In addition, the height is 2.24mm. Furthermore, the product is 3.94mm wide. Its accurate length is 4.57mm. The package is a sort of do-214aa (smb). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is supplied with 137v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.

pdf icon
P6SMB Series, Surface Mount TRANSZORB® Transient Voltage Suppressors(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
