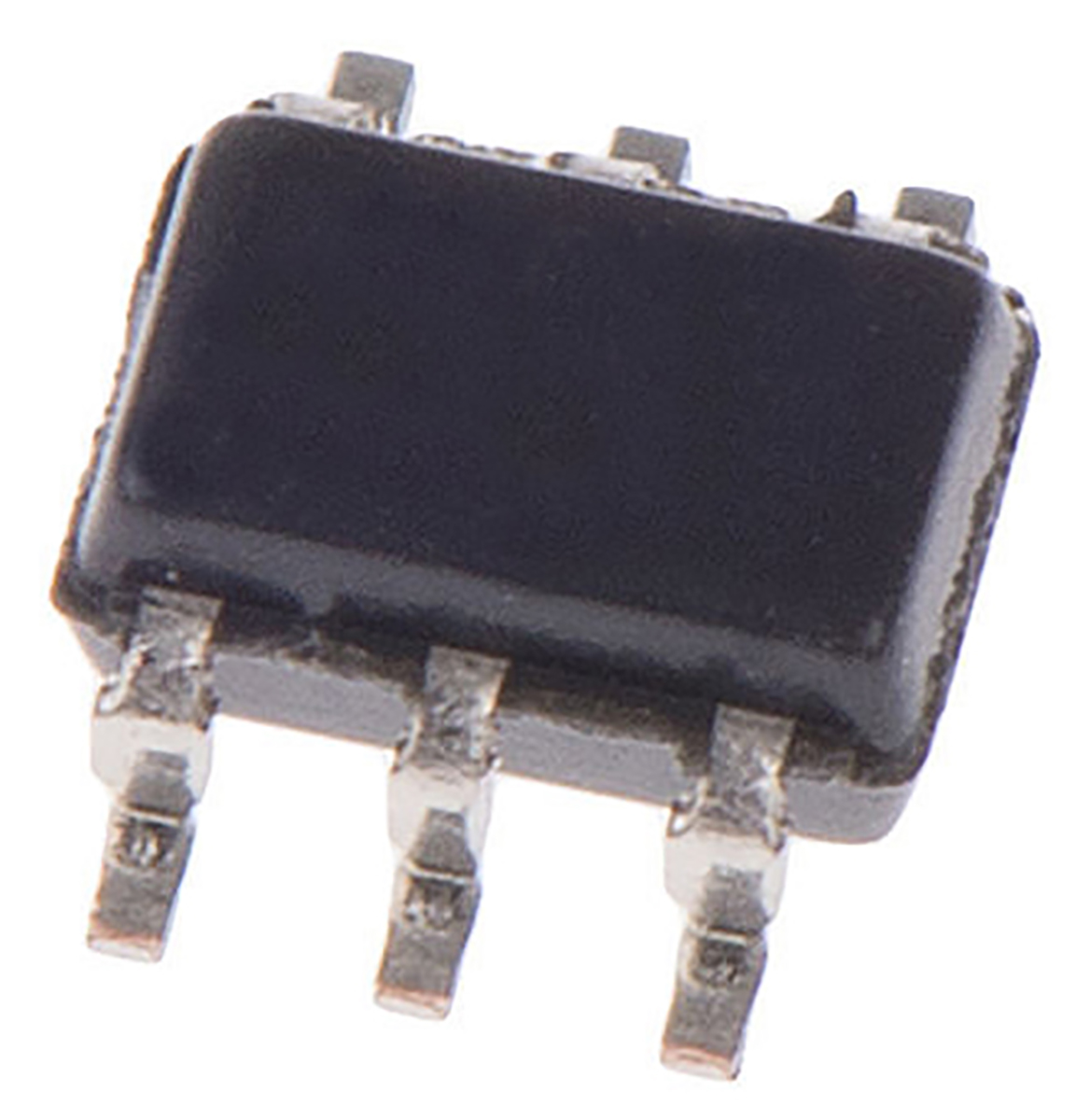

Semtech SMF05C.TCT, Quint Uni-Directional TVS Diode, 100W, 6-Pin SOT-363 (SC-70)
Product Information
Maximum Peak Pulse Current:
8A
Maximum Reverse Stand-off Voltage:
5V
Dimensions:
2 x 1.25 x 0.9mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+125 °C
Minimum Breakdown Voltage:
6V
ESD Protection:
Yes
Peak Pulse Power Dissipation:
100W
Height:
0.9mm
Width:
1.25mm
Length:
2mm
Package Type:
SOT-363 (SC-70)
Number of Elements per Chip:
5
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
5µA
Maximum Clamping Voltage:
12.5V
Diode Configuration:
Common Anode
Pin Count:
6
Test Current:
1mA
Checking for live stock
FAQs
Yes. You can also search SMF05C.TCT on website for other similar products.
We accept all major payment methods for all products including ET14003247. Please check your shopping cart at the time of order.
You can order Semtech brand products with SMF05C.TCT directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Semtech SMF05C.TCT, Quint Uni-Directional TVS Diode, 100W, 6-Pin SOT-363 (SC-70). You can also check on our website or by contacting our customer support team for further order details on Semtech SMF05C.TCT, Quint Uni-Directional TVS Diode, 100W, 6-Pin SOT-363 (SC-70).
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14003247 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Semtech" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14003247.
Yes. We ship SMF05C.TCT Internationally to many countries around the world.
This is Quint Uni-Directional TVS Diode 100W 6-Pin SOT-363 (SC-70) manufactured by Semtech. The manufacturer part number is SMF05C.TCT. It also has 8a maximum peak pulse current. While the maximised reverse stand-off voltage includes 5v. The given dimensions of the product include 2 x 1.25 x 0.9mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +125 °c. It harbours a 6v of minimum breakdown voltage. ESD Protected - yes. It has 100w of peak pulse power dissipation. In addition, the height is 0.9mm. Furthermore, the product is 1.25mm wide. Its accurate length is 2mm. The package is a sort of sot-363 (sc-70). It consists of 5 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The product has a maximum 5µa of reverse leakage current. It is supplied with 12.5v of maximum clamping voltage. The diode features a common anode configuration. It contains 6 pins. In addition, it has 1ma test current.
