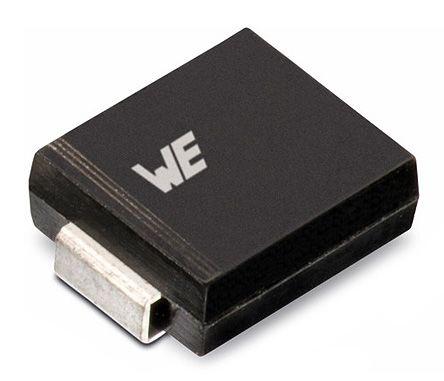

Wurth Elektronik 824540281, Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB

824540281 Wurth Elektronik , Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB
Wurth Elektronik

Product Information

Maximum Peak Pulse Current:
33.1A
Dimensions:
6.86 x 5.9 x 2.34mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
32.75V
Peak Pulse Power Dissipation:
1500W
Height:
2.34mm
Width:
5.9mm
Length:
6.86mm
Package Type:
DO-214AB (SMC)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Clamping Voltage:
45.4V
Diode Configuration:
Single
Pin Count:
2
Test Current:
1mA
RoHs Compliant
Checking for live stock

This is Uni-Directional TVS Diode 1500W 2-Pin DO-214AB manufactured by Wurth Elektronik. The manufacturer part number is 824540281. It also has 33.1a maximum peak pulse current. The given dimensions of the product include 6.86 x 5.9 x 2.34mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 32.75v of minimum breakdown voltage. It has 1500w of peak pulse power dissipation. In addition, the height is 2.34mm. Furthermore, the product is 5.9mm wide. Its accurate length is 6.86mm. The package is a sort of do-214ab (smc). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is supplied with 45.4v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. In addition, it has 1ma test current.
