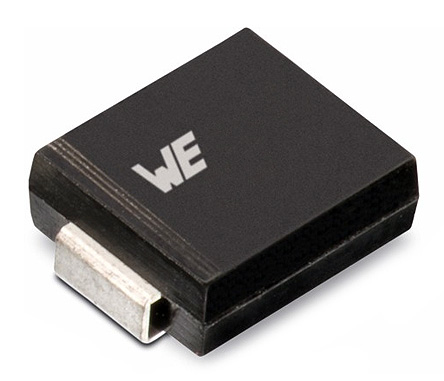

Wurth Elektronik 824541121, Bi-Directional TVS Diode, 1500W, 2-Pin DO-214AB

824541121 Wurth Elektronik , Bi-Directional TVS Diode, 1500W, 2-Pin DO-214AB
824541121 Wurth Elektronik , Bi-Directional TVS Diode, 1500W, 2-Pin DO-214AB
Wurth Elektronik

Product Information

Maximum Peak Pulse Current:
75.4A
Dimensions:
6.86 x 5.9 x 2.34mm
Mounting Type:
Surface Mount
Direction Type:
Bi-Directional
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Minimum Breakdown Voltage:
14V
Height:
2.34mm
Width:
5.9mm
Length:
6.86mm
Package Type:
DO-214AB (SMC)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Clamping Voltage:
19.9V
Diode Configuration:
Single
Pin Count:
2
Peak Pulse Power Dissipation:
1500W
Test Current:
1mA
Checking for live stock

This is Bi-Directional TVS Diode 1500W 2-Pin DO-214AB manufactured by Wurth Elektronik. The manufacturer part number is 824541121. It also has 75.4a maximum peak pulse current. The given dimensions of the product include 6.86 x 5.9 x 2.34mm. The product is available in surface mount configuration. While is configured as bi-directional. It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. It harbours a 14v of minimum breakdown voltage. In addition, the height is 2.34mm. Furthermore, the product is 5.9mm wide. Its accurate length is 6.86mm. The package is a sort of do-214ab (smc). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. It is supplied with 19.9v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. It has 1500w of peak pulse power dissipation. In addition, it has 1ma test current.
