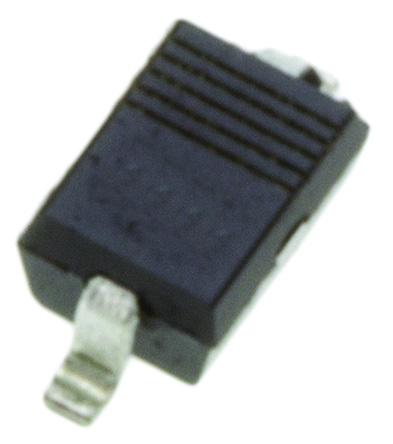

Diodes Inc SD12-7, TVS Diode
Product Information
Dimensions:
1.8 x 1.4 x 1.1mm
Direction Type:
Uni-Directional
Capacitance:
150pF
Maximum Clamping Voltage:
25V
Diode Configuration:
Single
Test Current:
1mA
Maximum Peak Pulse Current:
15A
Minimum Breakdown Voltage:
13.3V
Maximum Reverse Leakage Current:
1µA
Package Type:
SOD-323
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
ESD Protection:
Yes
Length:
1.8mm
Pin Count:
2
Peak Pulse Power Dissipation:
350W
Maximum Reverse Stand-off Voltage:
12V
Mounting Type:
Surface Mount
Width:
1.4mm
Height:
1.1mm
Minimum Operating Temperature:
-55 °C
Checking for live stock
FAQs
Yes. You can also search SD12-7 on website for other similar products.
We accept all major payment methods for all products including ET13823914. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with SD12-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc SD12-7, TVS Diode. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc SD12-7, TVS Diode.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13823914 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13823914.
Yes. We ship SD12-7 Internationally to many countries around the world.
This is Diodes Inc TVS Diode manufactured by DiodesZetex. The manufacturer part number is SD12-7. The given dimensions of the product include 1.8 x 1.4 x 1.1mm. While is configured as uni-directional. It provides a 150pf of capacitance value. It is supplied with 25v of maximum clamping voltage. The diode features a single configuration. In addition, it has 1ma test current. It also has 15a maximum peak pulse current. It harbours a 13.3v of minimum breakdown voltage. The product has a maximum 1µa of reverse leakage current. The package is a sort of sod-323. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. ESD Protected - yes. Its accurate length is 1.8mm. It contains 2 pins. It has 350w of peak pulse power dissipation. While the maximised reverse stand-off voltage includes 12v. The product is available in surface mount configuration. Furthermore, the product is 1.4mm wide. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -55 °c.
