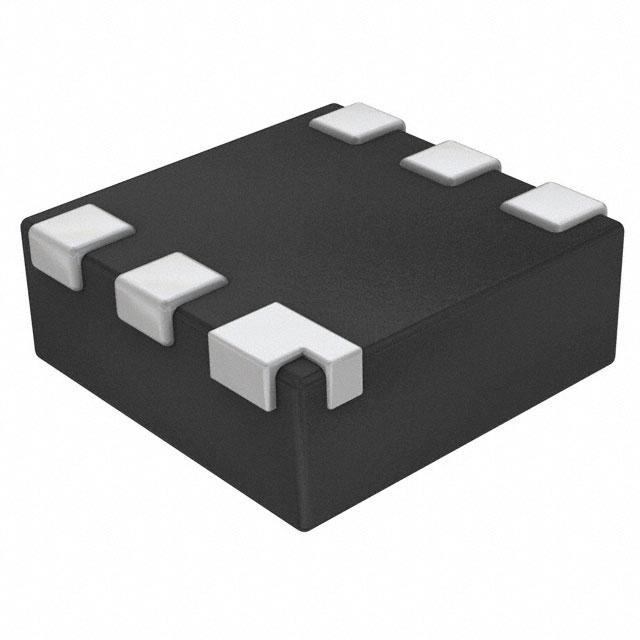

Texas Instruments TPD5E003DPFR
Product Information
Voltage - Clamping (Max) @ Ipp:
19.5V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 125°C (TA)
Package / Case:
6-XFDFN
Type:
Zener
edacadModel:
TPD5E003DPFR Models
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
6V
Applications:
General Purpose
edacadModelUrl:
/en/models/3871273
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
5
Bidirectional Channels:
4
standardLeadTime:
6 Weeks
Current - Peak Pulse (10/1000µs):
3A (8/20µs)
Voltage - Reverse Standoff (Typ):
5V (Max)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
6-X2SON (1x1)
Capacitance @ Frequency:
10pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
40W
Base Product Number:
TPD5E003
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search TPD5E003DPFR on website for other similar products.
We accept all major payment methods for all products including ET11745808. Please check your shopping cart at the time of order.
You can order Texas Instruments brand products with TPD5E003DPFR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Texas Instruments TPD5E003DPFR. You can also check on our website or by contacting our customer support team for further order details on Texas Instruments TPD5E003DPFR.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11745808 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Texas Instruments" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11745808.
Yes. We ship TPD5E003DPFR Internationally to many countries around the world.
This is manufactured by Texas Instruments. The manufacturer part number is TPD5E003DPFR. The maximum clamping voltage is 19.5v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -40°c ~ 125°c (ta) operating temperature range. Moreover, the product comes in 6-xfdfn. It comes in zener configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 6v. The product is widely employed in general purpose. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). It has 5 unidirectional channels. The product has 4 bidirectional channels. It has a long 6 weeks standard lead time. The peak pulse of the product is given as 3a (8/20µs). Provide with the typical reverse standoff voltage of 5v (max). The product is available in surface mount configuration. 6-x2son (1x1) is the supplier device package value. It has a nominal capacitance and frequency values of 10pf @ 1mhz. Power Line Protection: no. Furthermore, the peak pulse power of the product is 40w. Moreover, it corresponds to tpd5e003, a base product number of the product. The product is designated with the ear99 code number.
