Maximum Peak Pulse Current:
12A
Dimensions:
1.3 x 0.9 x 0.5mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Minimum Breakdown Voltage:
18V
ESD Protection:
Yes
Peak Pulse Power Dissipation:
400W
Height:
0.5mm
Width:
0.9mm
Length:
1.3mm
Maximum Reverse Stand-off Voltage:
15V
Package Type:
SOD-523
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
Maximum Reverse Leakage Current:
500nA
Maximum Clamping Voltage:
34V
Diode Configuration:
Single
Pin Count:
2
Voltage - Clamping (Max) @ Ipp:
34V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
SC-79, SOD-523
Type:
Zener
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
18V
Applications:
General Purpose
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
1
standardLeadTime:
15 Weeks
Current - Peak Pulse (10/1000µs):
12A (8/20µs)
Voltage - Reverse Standoff (Typ):
15V
Mounting Type:
Surface Mount
Series:
ESDA, TRANSIL™
Supplier Device Package:
SOD-523
Capacitance @ Frequency:
105pF @ 1MHz
Power Line Protection:
No
Power - Peak Pulse:
400W
Base Product Number:
ESDA18
ECCN:
EAR99

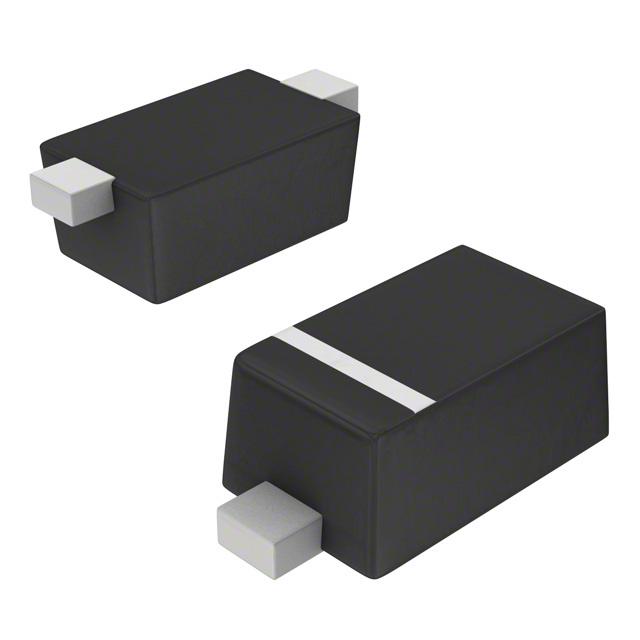

This is manufactured by STMicroelectronics. The manufacturer part number is ESDA18-1K. It also has 12a maximum peak pulse current. The given dimensions of the product include 1.3 x 0.9 x 0.5mm. The product is available in surface mount configuration. While is configured as uni-directional. It has a maximum operating temperature of +150 °c. It harbours a 18v of minimum breakdown voltage. ESD Protected - yes. It has 400w of peak pulse power dissipation. In addition, the height is 0.5mm. Furthermore, the product is 0.9mm wide. Its accurate length is 1.3mm. While the maximised reverse stand-off voltage includes 15v. The package is a sort of sod-523. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 500na of reverse leakage current. It is supplied with 34v of maximum clamping voltage. The diode features a single configuration. It contains 2 pins. The maximum clamping voltage is 34v. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in sc-79, sod-523. It comes in zener configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 18v. The product is widely employed in general purpose. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). It has 1 unidirectional channels. It has a long 15 weeks standard lead time. The peak pulse of the product is given as 12a (8/20µs). Provide with the typical reverse standoff voltage of 15v. The product esda, transil™, is a highly preferred choice for users. sod-523 is the supplier device package value. It has a nominal capacitance and frequency values of 105pf @ 1mhz. Power Line Protection: no. Furthermore, the peak pulse power of the product is 400w. Moreover, it corresponds to esda18, a base product number of the product. The product is designated with the ear99 code number.
