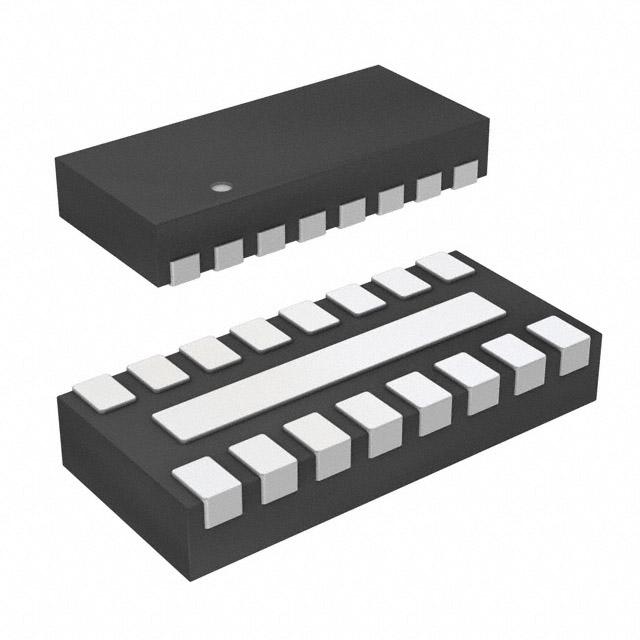

STMicroelectronics HSP061-8M16
Product Information
Maximum Peak Pulse Current:
3A
Maximum Reverse Stand-off Voltage:
3V
Dimensions:
3.4 x 1.6 x 0.53mm
Mounting Type:
Surface Mount
ESD Protection:
Yes
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
100nA
Minimum Breakdown Voltage:
6V
Height:
0.53mm
Width:
1.6mm
Length:
3.4mm
Package Type:
μQFN
Number of Elements per Chip:
8
Minimum Operating Temperature:
-40 °C
Maximum Clamping Voltage:
14V
Diode Configuration:
Complex Array
Pin Count:
16
Voltage - Clamping (Max) @ Ipp:
14V (Typ)
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
16-UFDFN Exposed Pad
Type:
Steering (Rail to Rail)
edacadModel:
HSP061-8M16 Models
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
6V
Applications:
HDMI
edacadModelUrl:
/en/models/2529259
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
8
Current - Peak Pulse (10/1000µs):
3A (8/20µs)
Voltage - Reverse Standoff (Typ):
3V
Mounting Type:
Surface Mount
Series:
HSP
Supplier Device Package:
16-UQFN (3.5x1.5)
Capacitance @ Frequency:
0.6pF @ 200MHz ~ 3GHz
Power Line Protection:
Yes
Power - Peak Pulse:
-
Base Product Number:
HSP061
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search HSP061-8M16 on website for other similar products.
We accept all major payment methods for all products including ET11407958. Please check your shopping cart at the time of order.
You can order STMicroelectronics brand products with HSP061-8M16 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in TVS Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of STMicroelectronics HSP061-8M16. You can also check on our website or by contacting our customer support team for further order details on STMicroelectronics HSP061-8M16.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11407958 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "STMicroelectronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11407958.
Yes. We ship HSP061-8M16 Internationally to many countries around the world.
This is manufactured by STMicroelectronics. The manufacturer part number is HSP061-8M16. It also has 3a maximum peak pulse current. While the maximised reverse stand-off voltage includes 3v. The given dimensions of the product include 3.4 x 1.6 x 0.53mm. The product is available in surface mount configuration. ESD Protected - yes. It has a maximum operating temperature of +150 °c. The product has a maximum 100na of reverse leakage current. It harbours a 6v of minimum breakdown voltage. In addition, the height is 0.53mm. Furthermore, the product is 1.6mm wide. Its accurate length is 3.4mm. The package is a sort of μqfn. It consists of 8 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. It is supplied with 14v of maximum clamping voltage. The diode features a complex array configuration. It contains 16 pins. The maximum clamping voltage is 14v (typ). It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 16-ufdfn exposed pad. It comes in steering (rail to rail) configuration. In addition, it is reach unaffected. The minimum breakdown voltage is 6v. The product is widely employed in hdmi. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). It has 8 unidirectional channels. The peak pulse of the product is given as 3a (8/20µs). Provide with the typical reverse standoff voltage of 3v. The product hsp, is a highly preferred choice for users. 16-uqfn (3.5x1.5) is the supplier device package value. It has a nominal capacitance and frequency values of 0.6pf @ 200mhz ~ 3ghz. Power Line Protection: yes. Moreover, it corresponds to hsp061, a base product number of the product. The product is designated with the ear99 code number.
