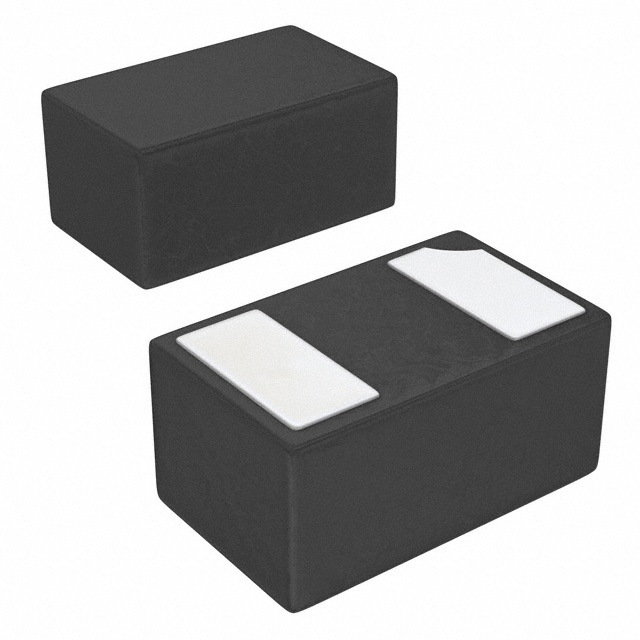

STMicroelectronics ESDA17P50-1U1M
Product Information
Maximum Peak Pulse Current:
46A
Maximum Reverse Stand-off Voltage:
15V
Dimensions:
1.6 x 1 x 0.55mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Maximum Operating Temperature:
+150 °C
Minimum Breakdown Voltage:
15.6V
ESD Protection:
Yes
Peak Pulse Power Dissipation:
1200W
Height:
0.55mm
Width:
1mm
Length:
1.6mm
Package Type:
QFN
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Reverse Leakage Current:
50nA
Maximum Clamping Voltage:
26.5V
Diode Configuration:
Array
Pin Count:
2
Test Current:
1mA
Voltage - Clamping (Max) @ Ipp:
26.5V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
2-UDFN
Type:
Zener
edacadModel:
ESDA17P50-1U1M Models
REACH Status:
REACH Unaffected
Voltage - Breakdown (Min):
15.6V
Applications:
General Purpose
edacadModelUrl:
/en/models/6230123
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Unidirectional Channels:
1
standardLeadTime:
15 Weeks
Current - Peak Pulse (10/1000µs):
46A (8/20µs)
Voltage - Reverse Standoff (Typ):
15V
Mounting Type:
Surface Mount
Series:
ESDA
Supplier Device Package:
1610
Capacitance @ Frequency:
-
Power Line Protection:
No
Power - Peak Pulse:
1200W (1.2kW)
Base Product Number:
ESDA17
ECCN:
EAR99
