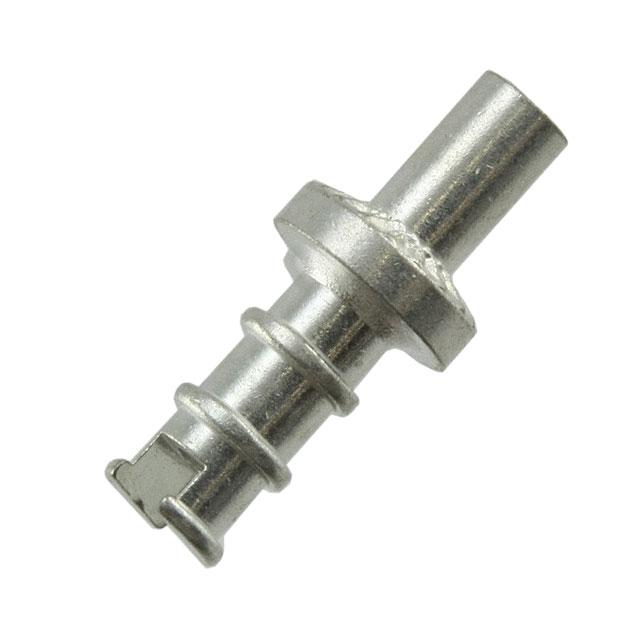

This is manufactured by Harwin Inc.. The manufacturer part number is H2072ZL1. It has 0.257" (6.52mm) length above the board. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product comprises triple turrets. The product features swage termination style. The flange diameter is 0.156" (3.96mm). The product has an integral 0.382" (9.70mm) overall length. In addition, it is reach unaffected. The terminal is a single end, fork type. It is shipped in bulk package . The given diameter of mounting hole is 0.079" ~ 0.083" (2.01mm ~ 2.11mm). It has 0.074" ~ 0.079" (1.87mm ~ 2.01mm) staking side OD. While 0.046" ~ 0.048" (1.17mm ~ 1.22mm) is the staking side ID. The turret's head is 0.100" (2.54mm) in diameter. Furthermore, the product is galvanized with excellent tin contact finishing. The product has a 0.125" (3.18mm) length below flange. Insulation Option: non-insulated. Moreover, 0.094" (2.39mm) is the given board thickness. It has a long 10 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The product is designated with the ear99 code number. Moreover, it corresponds to h2072, a base product number of the product. The product is made from sturdy brass alloy materials.
H2072ZL1(Product Brief)
PCB Hardware Catalog(HTML Datasheet)
H2072ZL1 Drawing(2D Drawings)
Harwin REACH(Environmental Information)
PCB Hardware Catalog(Datasheets)
