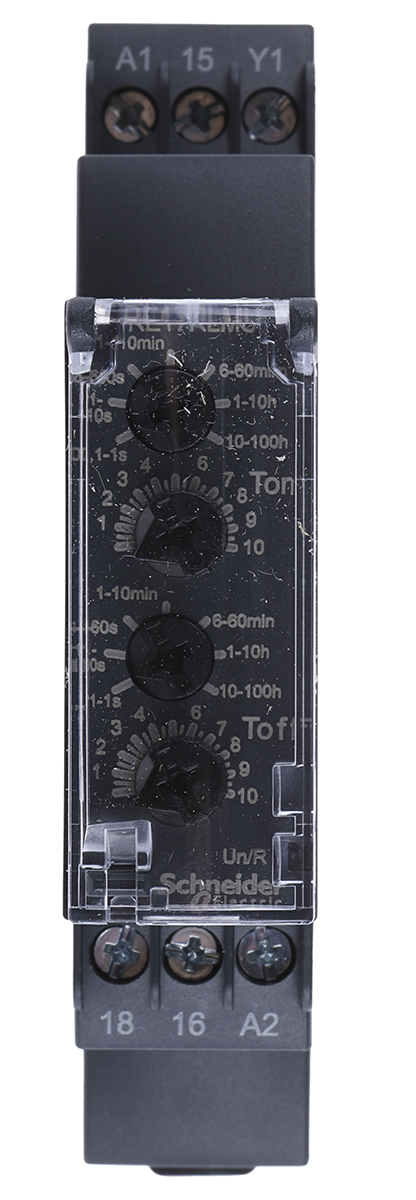

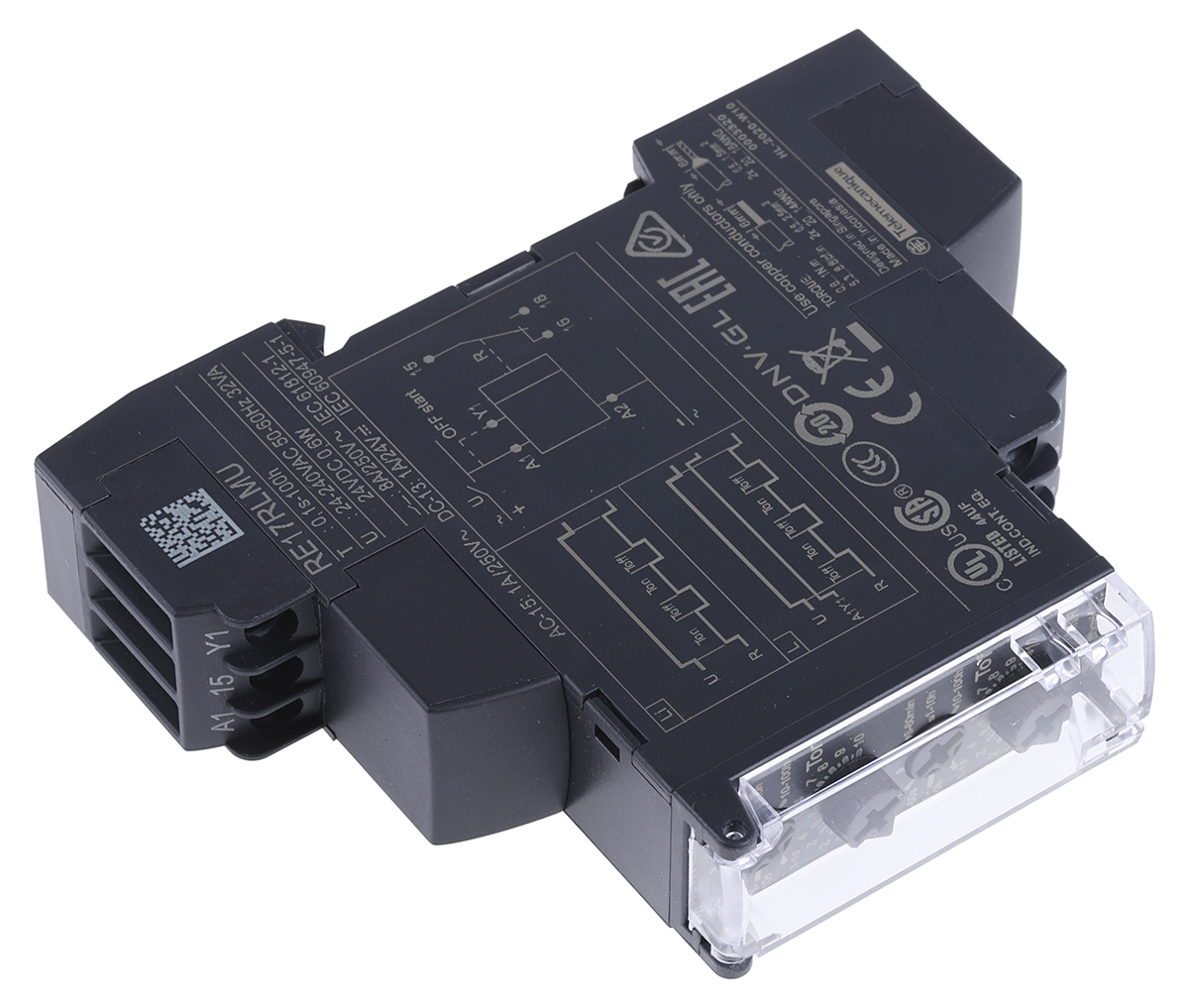

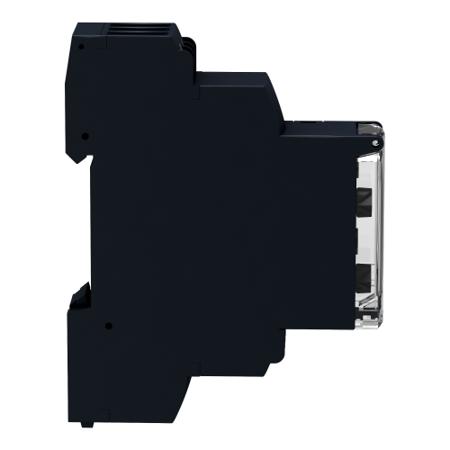

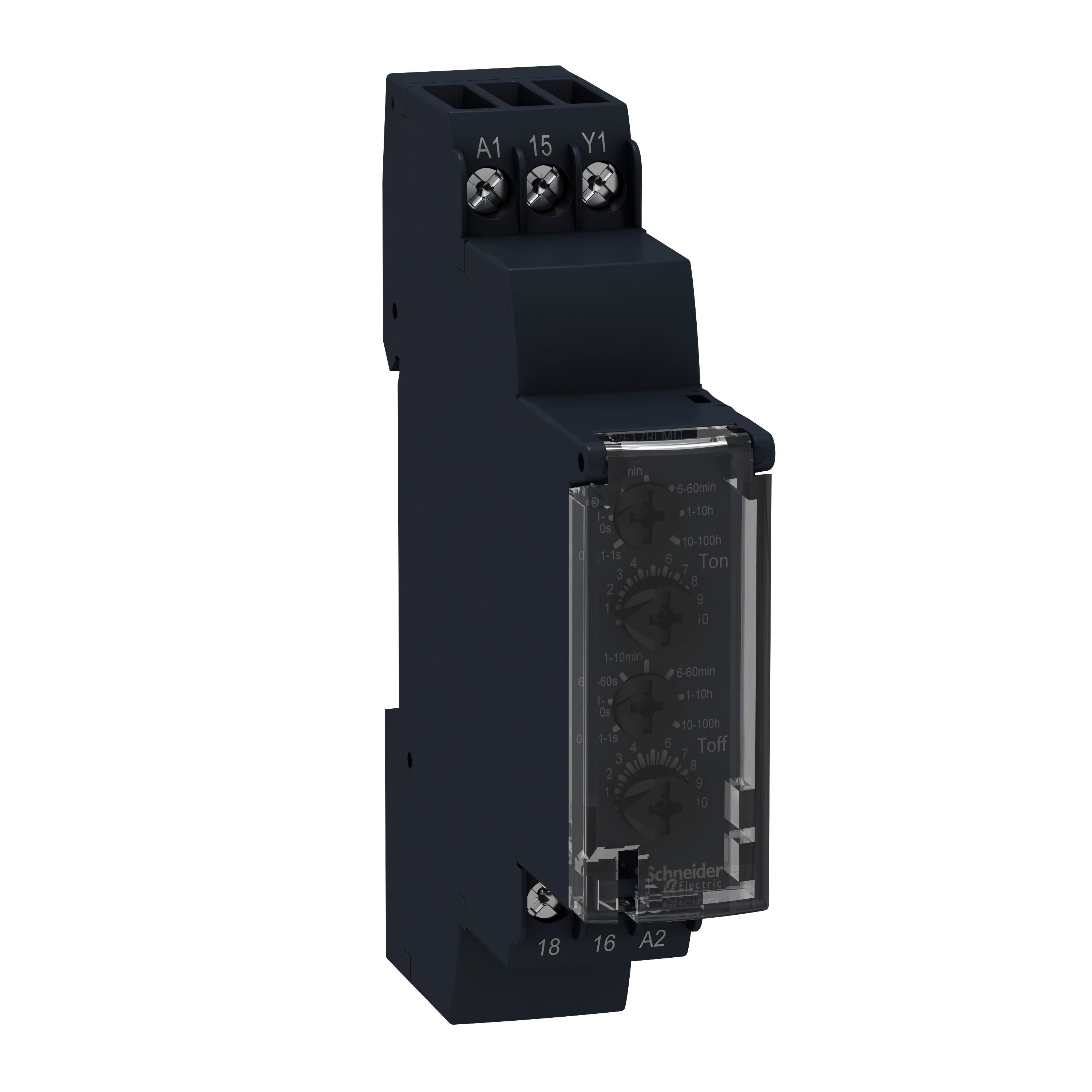

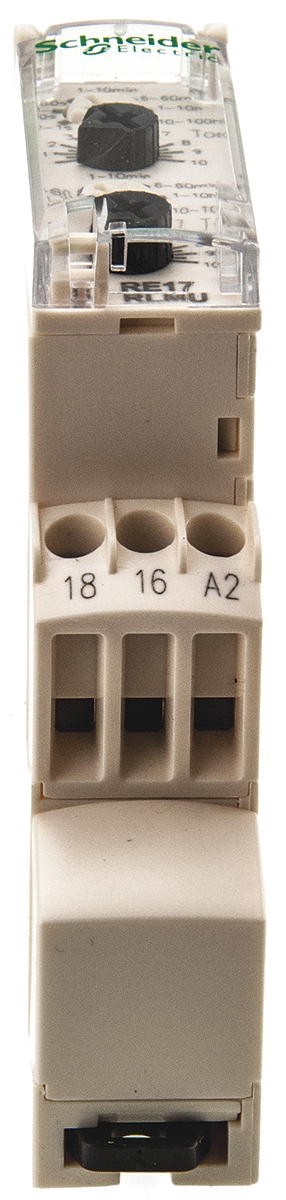

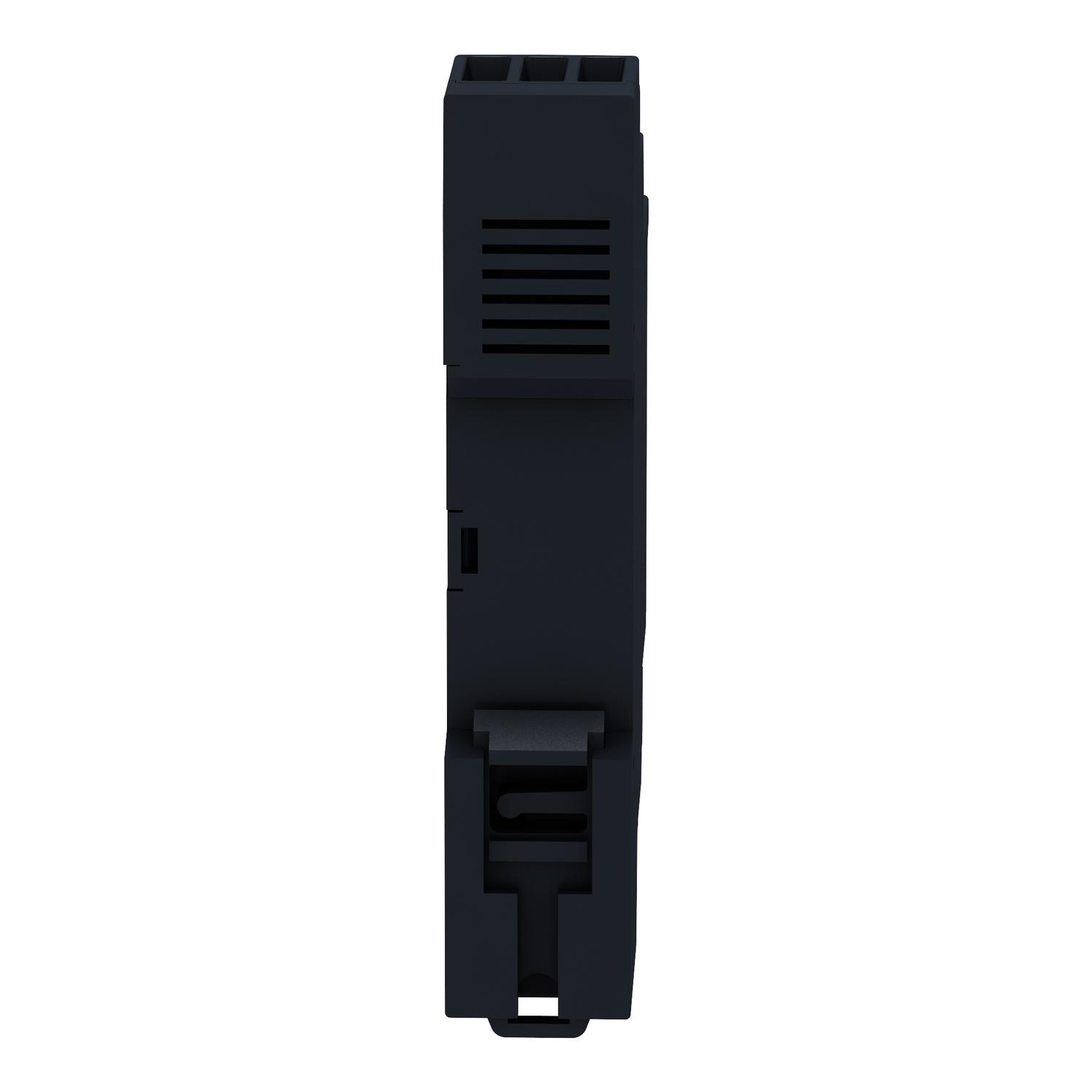

Schneider Electric Asymmetrical Multi Function Timer Relay, Screw, 0.1 s → 100 h, SPDT, 2 Contacts, SPDT

Enrgtech Part No: ET16836960
|
Manufacturer Part No:
RE17RLMU
|
Manufacturer: Schneider Electric

RE17RLMU Schneider Electric Asymmetrical Multi Function Timer Relay, Screw, 0.1 s → 100 h, SPDT, 2 Contacts, SPDT

Product Information

Maximum Voltage:

24 V dc, 240V ac

Width:

17.5mm

Supply Voltage:

24 V dc, 24 → 240V ac

Maximum Current:

Time Range:

0.1 s → 100h

Mode of Operation:

Asymmetrical

Number of Timer Functions:

Multi Function

Maximum Operating Temperature:

+60°C

Terminal Type:

Screw

Time Delay:

<100ms

Minimum Operating Temperature:

-20°C

Time Increment:

Hours, Minutes, Seconds

Checking for live stock

The Schneider Electric RE17RLMU is a high-precision, multifunction timing relay belonging to the Harmony RE17 series, designed to provide flexible control for automated systems. This dual-function device features an asymmetrical flashing capability with two independently adjustable timing periods, ranging from 0.1 seconds to 100 hours. Its slim 17.5mm profile ensures it occupies minimal space on a DIN rail. The wide supply voltage compatibility (24V to 240V AC/DC) makes it a versatile solution for various global industrial standards.

Why Should You Buy the Relay?

This Schneider Electric RE17RLMU multifunction timer relay offers exceptional versatility by combining two timing functions into one compact unit, reducing inventory costs. Its robust design and wide voltage range ensure reliable performance across diverse industrial environments.

Supports wide-range timing adjustments from 0.1s to 100h for precise cycle control.
Ultra-slim modular design maximises cabinet space efficiency on standard 35mm DIN rails.

Feature Highlights & Applications Areas

Key Features
Dual-function asymmetrical flashing (starting pulse-on or pulse-off).
Wide supply voltage: 24V DC and 24V–240V AC (50/60 Hz).
8A SPDT (1 C/O) changeover contact for reliable switching.
Clear LED status indicators for power and timing progress.
Simple setup via front-facing rotary selector switches and trimmers.
Uses
Automated industrial machinery and process control loops.
HVAC systems for cycling fans, pumps, or compressors.
Building automation and lighting control sequences.
Water treatment segments for chemical dosing or periodic flushing.

Instruction Sheet(Technical Reference)

Datasheet_RE17RLMU(Technical Reference)

Zelio Selection Guide(Technical Reference)

RE17 Series Product Guides(Technical Reference)

Product Environmental Profile(Technical Reference)
