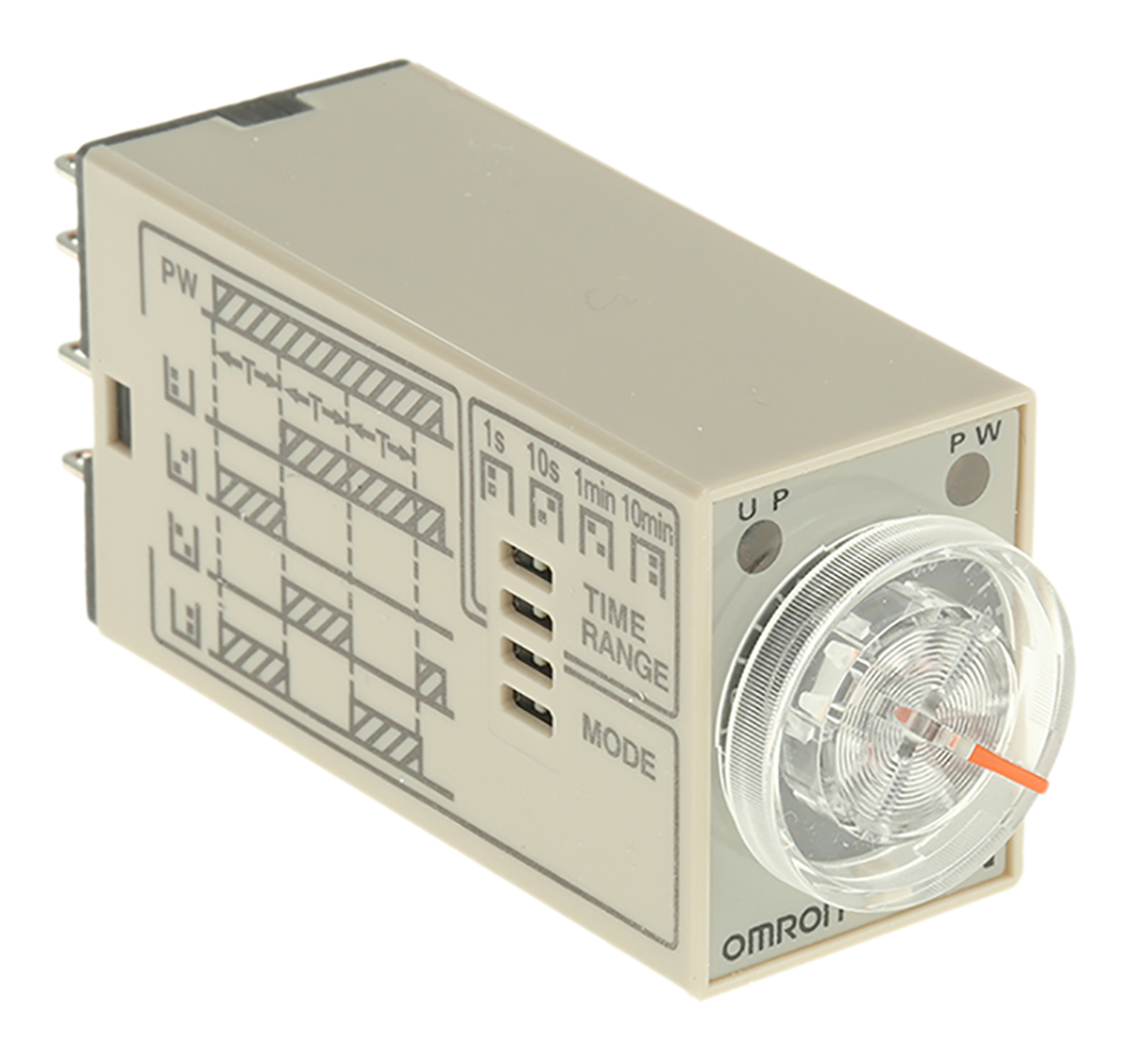

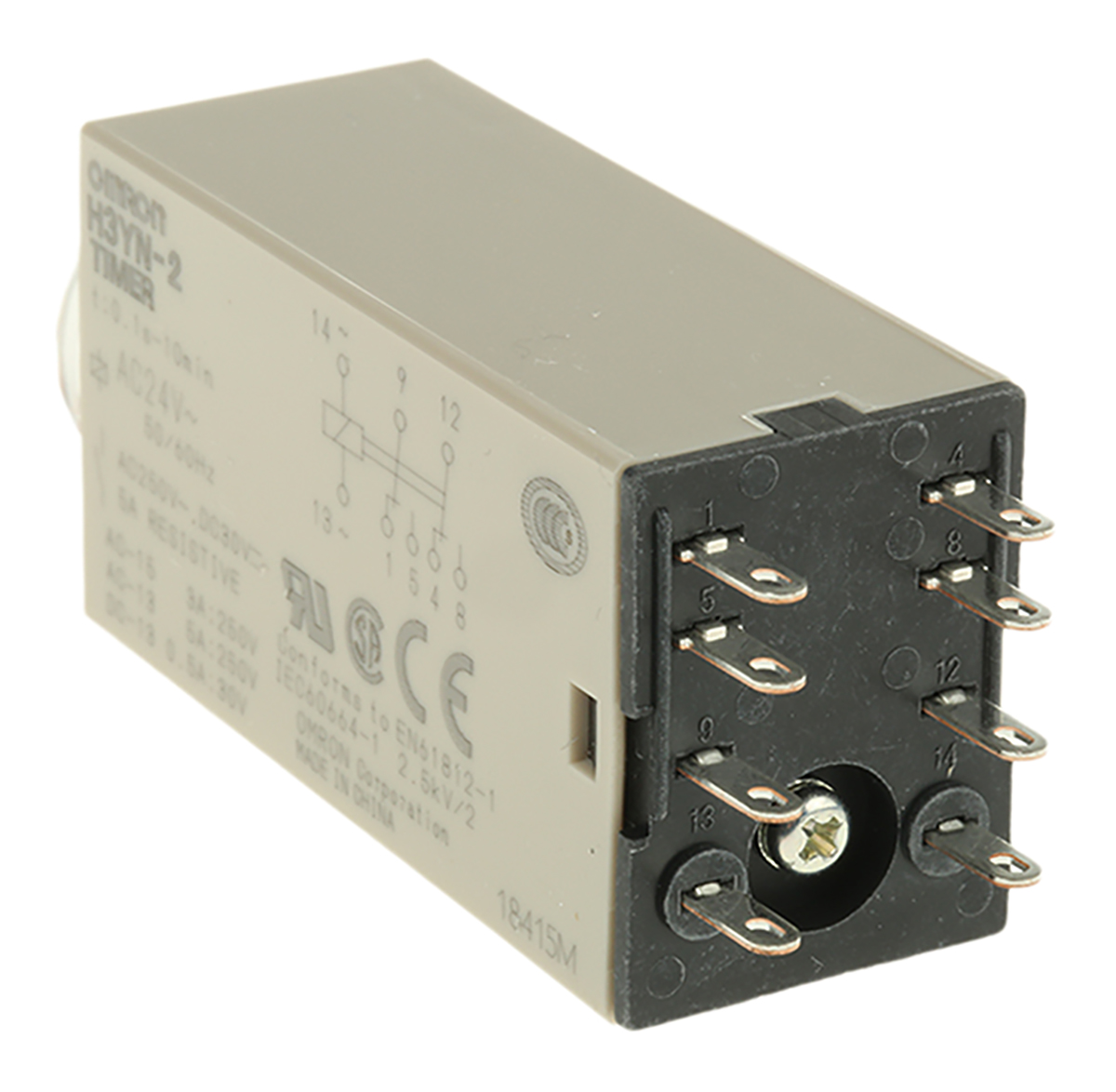

Omron Multi Function Timer Relay, Socket, 0.1 s → 10 min, 2 Contacts, DPDT, 24 V ac

Enrgtech Part No: ET16828499
|
Manufacturer Part No:
H3YN-2 AC24
|
Manufacturer: Omron

H3YN-2-AC24 Omron Multi Function Timer Relay, Socket, 0.1 s → 10 min, 2 Contacts, DPDT, 24 V ac

Product Information

Maximum Voltage:

250V ac

Width:

21.5mm

Supply Voltage:

24V ac

Maximum Current:

Time Range:

0.1 s → 10min

Mode of Operation:

Flicker OFF Start, Flicker ON Start, Interval, ON Delay

Number of Timer Functions:

Multi Function

Maximum Operating Temperature:

+50°C

Terminal Type:

Socket

Time Delay:

0.1s

Time Increment:

Minutes, Seconds

Power Supply:

External

Checking for live stock

The Omron H3YN-2 AC24 is a compact multi-function timer relay essential for precise time control in various automation and control panels. Operating on a 24 V AC supply, it features a Double-Pole, Double-Throw (DPDT) switch configuration with two contacts for versatile output control. Its multi-function capability supports several operating modes, including ON Delay, Interval, and Flicker operation, allowing for adjustable timing across a broad range from a quick 0.1 seconds up to 10 minutes. This reliable, socket-terminal relay is designed for easy DIN rail or panel mounting.

Top Reasons to Use the Omron H3YN-2 AC24 Timer Relay

This timer relay offers exceptional versatility, combining four distinct operating modes into a single compact unit, significantly reducing inventory complexity. Its small form factor allows for efficient space-saving installation on crowded DIN rails or panels. Offering precise, adjustable time control across a broad range, it ensures accurate sequence execution and synchronisation in automated industrial machinery and electrical control processes.

Core Performance Features & Key Uses

Multi-Function Operation: Includes ON Delay, Interval, Flicker ON Start, and Flicker OFF Start modes.
Wide Timing Range: User-adjustable from 0.1 seconds up to a maximum of 10 minutes.
Output Configuration: 2 Contacts with Double-Pole, Double-Throw (DPDT) switching at 5A max current.
Supply Voltage: Operates on a standard 24 V AC power supply.
Compact Mounting: Small size designed for flexible DIN Rail or Panel Mount installation.
Key Use: Controlling sequence delays, machine component start-up, and cyclical automation processes in control cabinets.
