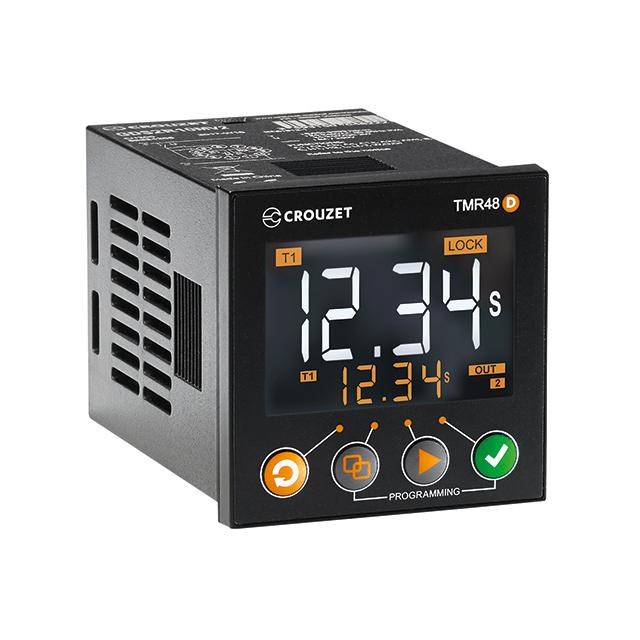

Crouzet GDS2R10MV2
Product Information
Maximum Voltage:
240V ac/dc
Width:
48mm
Supply Voltage:
24 → 240V ac/dc
Maximum Current:
10A
Time Range:
0.001 → 9.999 s, 0.01 → 99.99 s, 0.1 → 999.9 min, 0.1 → 999.9 s, 0.1 → 999.9 h, 1 min → 99 h 59 min, 1 s → 99 min 59 s, 1 → 9999 h, 1 → 9999 s, 1 → 9999min
Mode of Operation:
Recycler (Off Start), Recycler (On Start), Summation Time Relay, Symmetrical Flashing (Off Start), Symmetrical Flashing (On Start), Timing after Pulse of Control Contact, Total memory One Delay)
Number of Timer Functions:
Multi Function
Maximum Operating Temperature:
+60°C
Terminal Type:
Plug In
Time Increment:
Hours, Minutes, Seconds
Power Supply:
External
Switch Configuration:
SPDT
Contact Configuration:
DPDT
Length:
48mm
Minimum Voltage:
24V ac/dc
Mounting Type:
Panel Mount
Series:
Syr-Line
Depth:
68mm
Minimum Current:
8A
Minimum Operating Temperature:
-10°C
Number of Contacts:
2
HTSUS:
9107.00.8000
RoHS Status:
RoHS Compliant
Termination Style:
Plug In, 11 Pin (Octal)
Timing Initiate Method:
Input Voltage
Function:
Programmable (Multi-Function)
REACH Status:
REACH Unaffected
Package:
Box
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
DPDT (2 Form C)
Contact Rating @ Voltage:
10A @ 250VAC
standardLeadTime:
3 Weeks
Delay Time:
0.001 Sec ~ 9999 Hrs
Timing Adjustment Method:
Up/Down Digit Keys
Mounting Type:
Socketable
Series:
TMR48D
Voltage - Supply:
24 ~ 240VAC/DC
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search GDS2R10MV2 on website for other similar products.
We accept all major payment methods for all products including ET15934039. Please check your shopping cart at the time of order.
You can order Crouzet brand products with GDS2R10MV2 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Timer Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Crouzet GDS2R10MV2. You can also check on our website or by contacting our customer support team for further order details on Crouzet GDS2R10MV2.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET15934039 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Crouzet" products on our website by using Enrgtech's Unique Manufacturing Part Number ET15934039.
Yes. We ship GDS2R10MV2 Internationally to many countries around the world.
This is manufactured by Crouzet. The manufacturer part number is GDS2R10MV2. It has a maximum 240v ac/dc voltage . Furthermore, the product is 48mm wide. Features 24 → 240v ac/dc supply voltage. It also carries 10a maximum current. It has a standard 0.001 → 9.999 s, 0.01 → 99.99 s, 0.1 → 999.9 min, 0.1 → 999.9 s, 0.1 → 999.9 h, 1 min → 99 h 59 min, 1 s → 99 min 59 s, 1 → 9999 h, 1 → 9999 s, 1 → 9999min time range . Its mode of operation is recycler (off start), recycler (on start), summation time relay, symmetrical flashing (off start), symmetrical flashing (on start), timing after pulse of control contact, total memory one delay) . It includes a multi function functions timer . It has a maximum operating temperature of +60°c. The terminal is a plug in type. Its time increment is in hours, minutes, seconds . It includes a/an external power supply . It is created with a/an spdt switch configuration . The contact is equipped with dpdt configuration. Its accurate length is 48mm. It has a minimum 24v ac/dc voltage . The product is available in panel mount configuration. The product syr-line, is a highly preferred choice for users. The product comes in 68mm depth. It has a minimum 8a current . Whereas, the minimum operating temperature of the product is -10°c. The product contains 2 contacts. It is assigned with possible HTSUS value of 9107.00.8000. The product is rohs compliant. Moreover, it has plug in, 11 pin (octal) terminal style. It has input voltage mechanism for timing initiation. It performs basic function of programmable (multi-function). In addition, it is reach unaffected. It is shipped in box package . Its typical moisture sensitivity level is 1 (unlimited). It has an integral dpdt (2 form c) circuit. The given contact rating of the product and its voltage includes 10a @ 250vac. It has a long 3 weeks standard lead time. A product has a 0.001 sec ~ 9999 hrs delay time. While the timing adjustment mechanism includes up/down digit keys. The product is available in socketable configuration. The product tmr48d, is a highly preferred choice for users. It has optimum voltage supply of 24 ~ 240vac/dc. The product is designated with the ear99 code number.
