Schneider Electric Off Delay, On Delay Multi Function Timer Relay, Screw

Enrgtech Part No: ET14151792
|
Manufacturer Part No:
RE22R2ACMR
|
Manufacturer: Schneider Electric

RE22R2ACMR Schneider Electric Off Delay, On Delay Multi Function Timer Relay, Screw

Product Information

Maximum Voltage:

240V ac/dc

Width:

90mm

Supply Voltage:

24 → 240V ac/dc

Maximum Current:

Time Range:

0.05 → 1 s, 0.3 → 3 s, 1 → 10 s, 10 → 100 s, 3 → 30 h, 3 → 30 min, 3 → 30 s, 30 → 300 h, 30 → 300 min, 30 → 300s

Mode of Operation:

OFF Delay, ON Delay

Number of Timer Functions:

Multi Function

Maximum Operating Temperature:

+60°C

Terminal Type:

Screw

Time Delay:

<100ms

Minimum Operating Temperature:

-20°C

Time Increment:

Hours, Minutes, Seconds

Checking for live stock

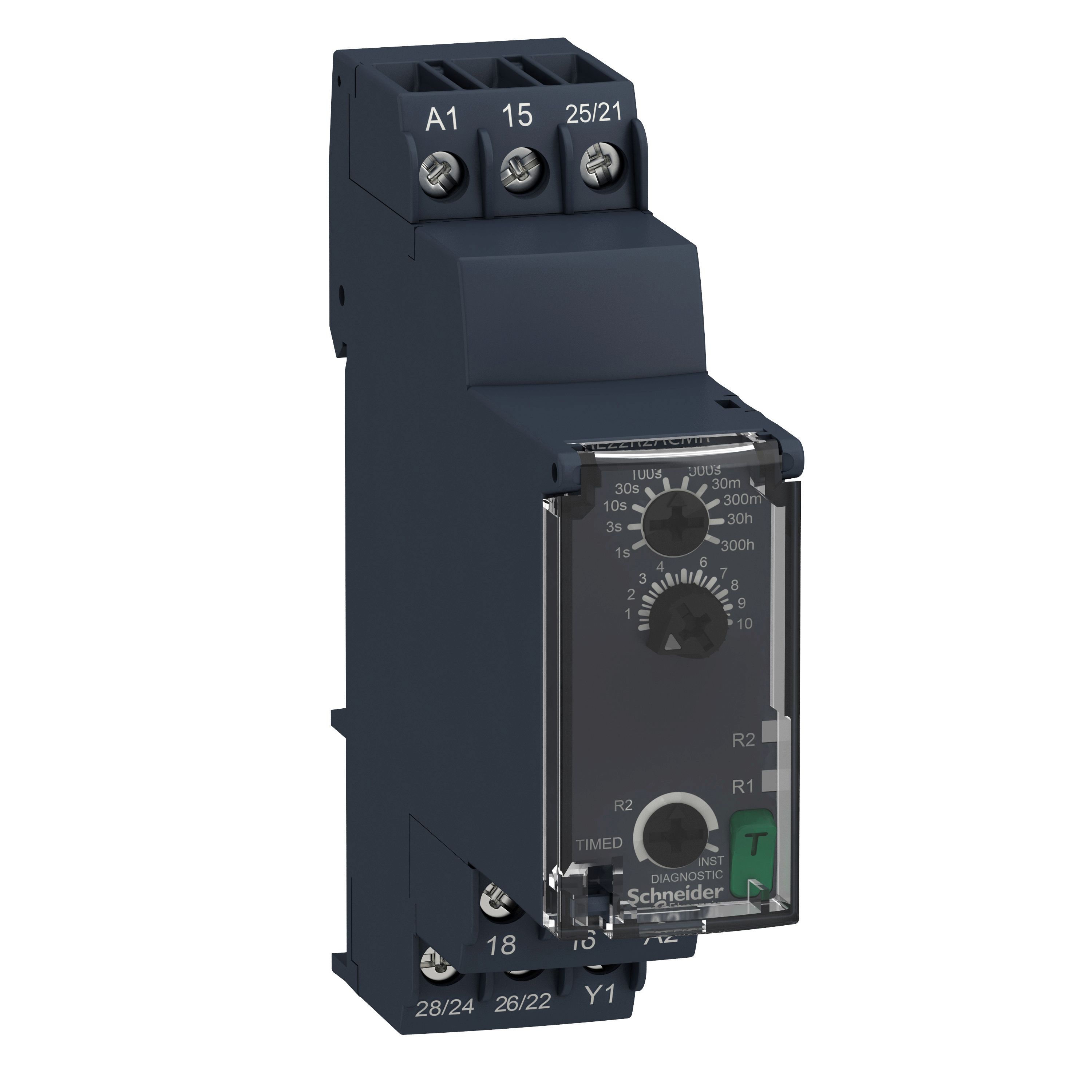

The RE22R2ACMR is a compact, modular timer relay from Schneider Electric’s Harmony range. It is designed to deliver flexible on-delay and off-delay timing control across industrial automation systems. Operating over a wide supply voltage range (24–240 V AC/DC), it supports single-function timing with precision settings from 0.05 seconds up to 300 hours. With a narrow 22.5 mm width and DIN-rail mount compatibility, this timer relay integrates cleanly into control panels. Its sealed cover and rotary adjustment dials allow for safe and intuitive use in harsh or enclosed environments.

What Makes the Schneider Electric RE22R2ACMR Multi-Function Timer Relay Stand Out?

The RE22R2ACMR timer relay stands out for combining full-function flexibility (on/off delay) with a wide timing range (0.05 s to 300 h) and ultra-compact modular construction, all in a package compatible with standard DIN-rail systems.

Functional Highlights of the Product:

Timing range: 0.05 seconds to 300 hours
Supply voltage: 24 to 240 V AC/DC
Contact configuration: 2 CO (change-over) contacts, up to 8 A
Narrow width: 22.5 mm housing
Mounting: DIN-rail mountable, modular format
Sealed cover to protect settings
Rotary adjustment dials for intuitive setting.

RE22R2ACMR Data Sheet(Technical Reference)

RE22 Series Product Guides(Technical Reference)

Product Environmental Profile(Technical Reference)
